| Type: |
HF Receiver |
| Frequency Range: |
0.03-30 MHz |
| Modes: |
All-mode |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
External: 13.8 VDC
Internal: 8 x AA batteries |
| Current Drain: |
? |
| Aerial Input: |
LW - HF 50 ohms nominal BNC
LW - HF 450 OHMS for wire terminals
LW - HF High Impedance Whip on BNC (slide switch selection)
VHF - 50 OHM nominal BNC for optional VHF adaptor insallation |
| Dimensions : |
250(W) x 88(H) X 240(D) mm |
| Weight: |
2.2 Kgs (without batteries fitted) |
| Manufactured: |
1994-19xx - Purchased S/H: March 18 2012 |
| Serial Number: |
1 0 0 7 2 |
| Modifications: |
None |
| Other Features: |
100 memories (with Scan facility) |
| Comments: |
Bought S/H (Ebay) |
| Related Documents: |
Operating manual (297 kB)
Addendum (31.7 kB)
Sales Leaflet (4.05 MB)
Review of AR3030 (View at Regular size) (96.8 kB) |

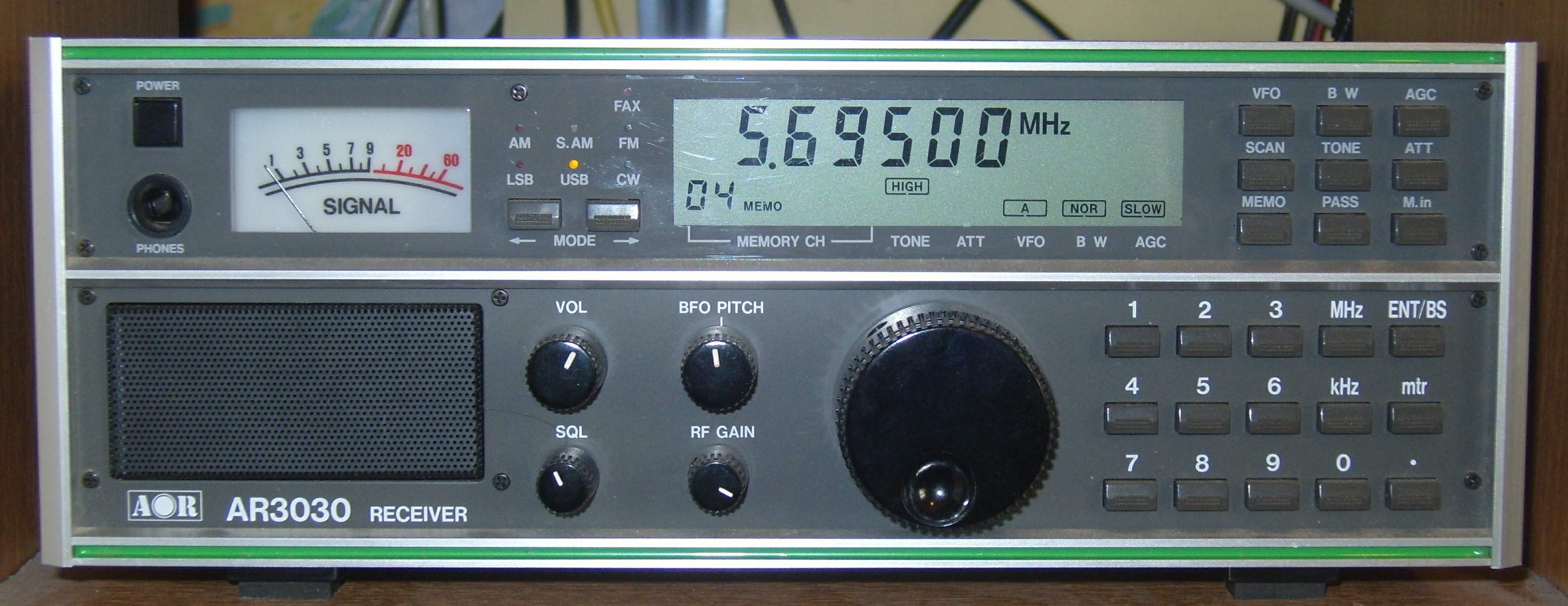

.jpg "AOR AR-3030")

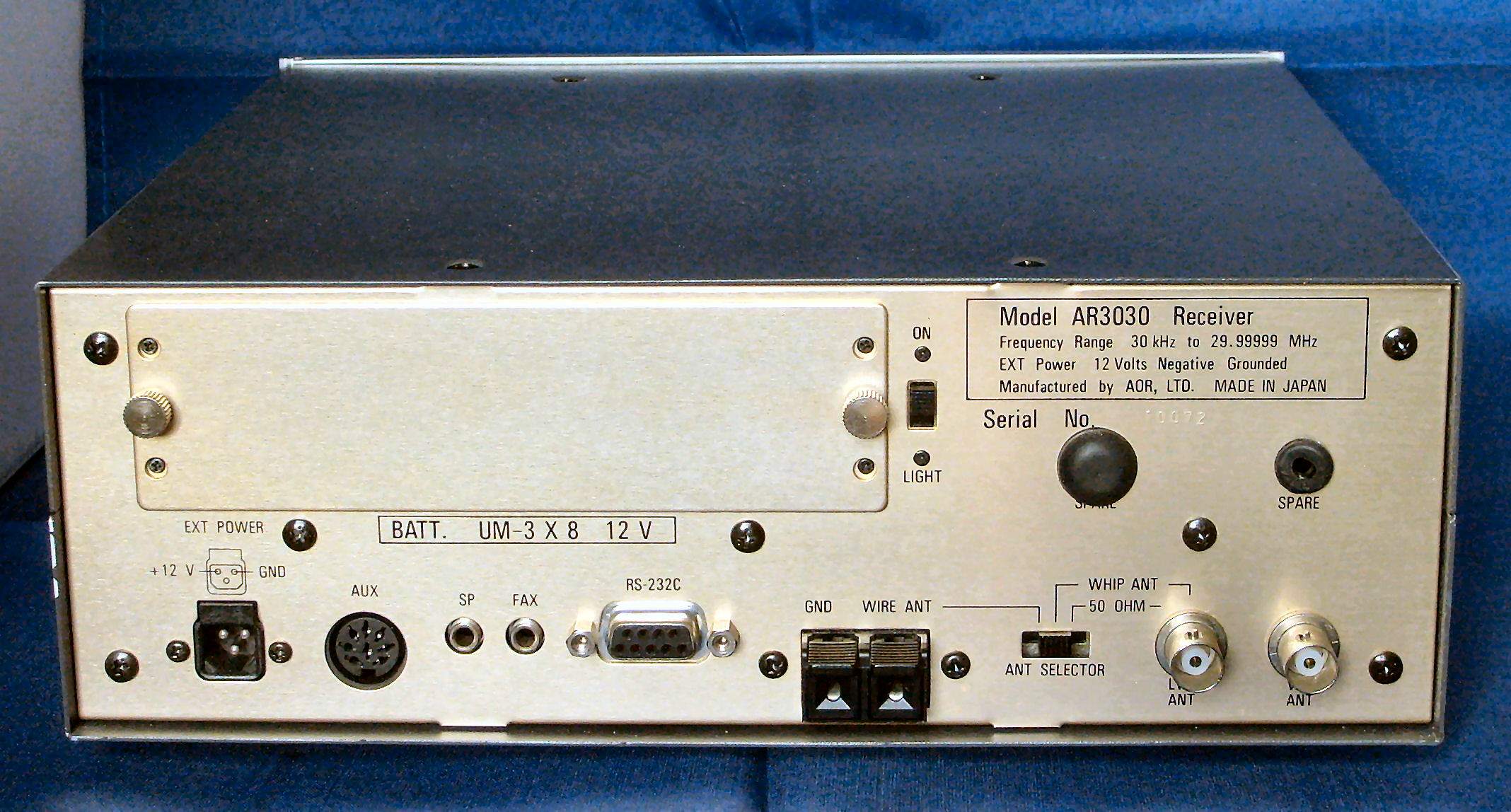

_rear.jpg "AOR AR-3030")

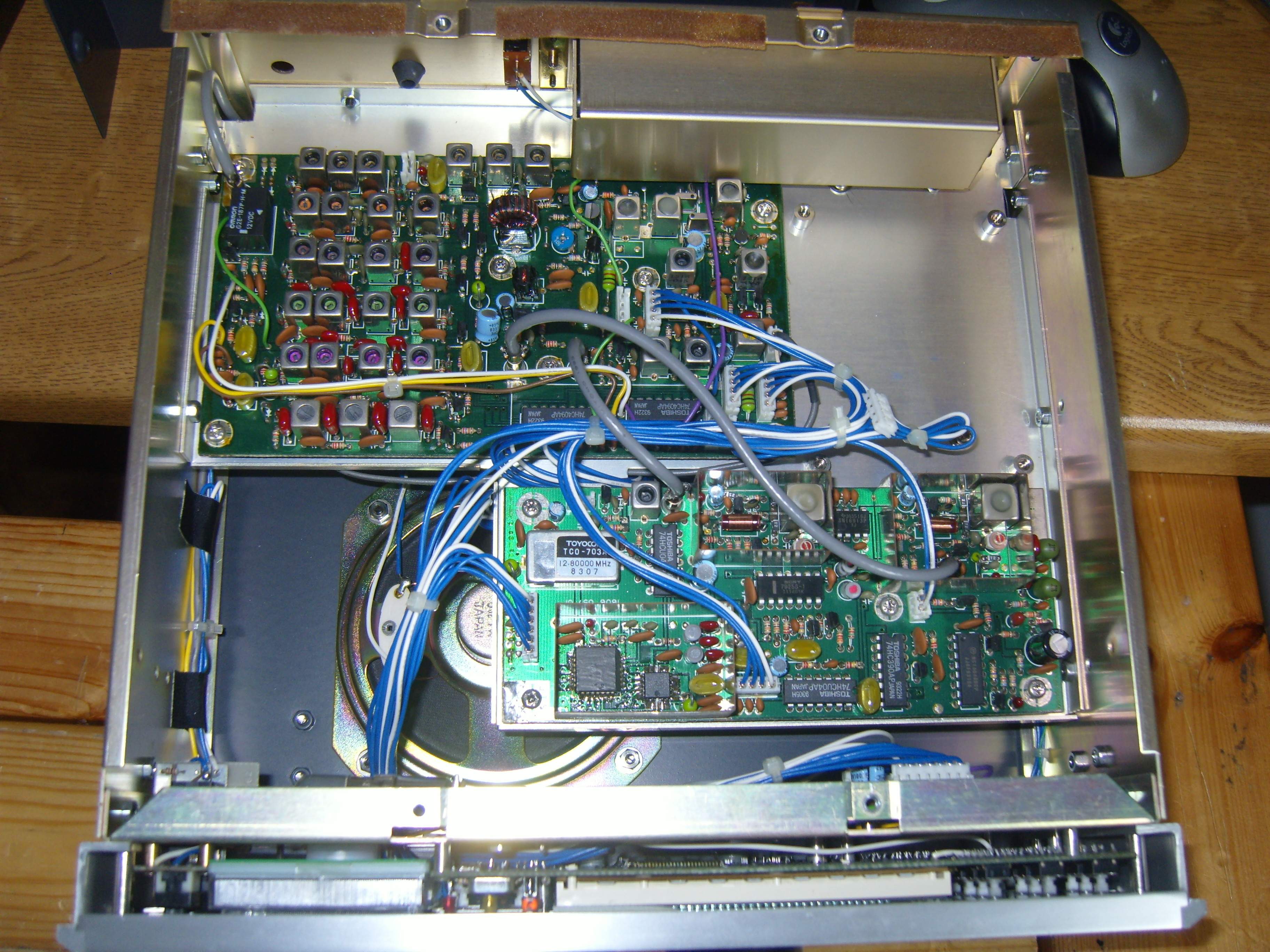

_1.jpg "AOR AR-3030")

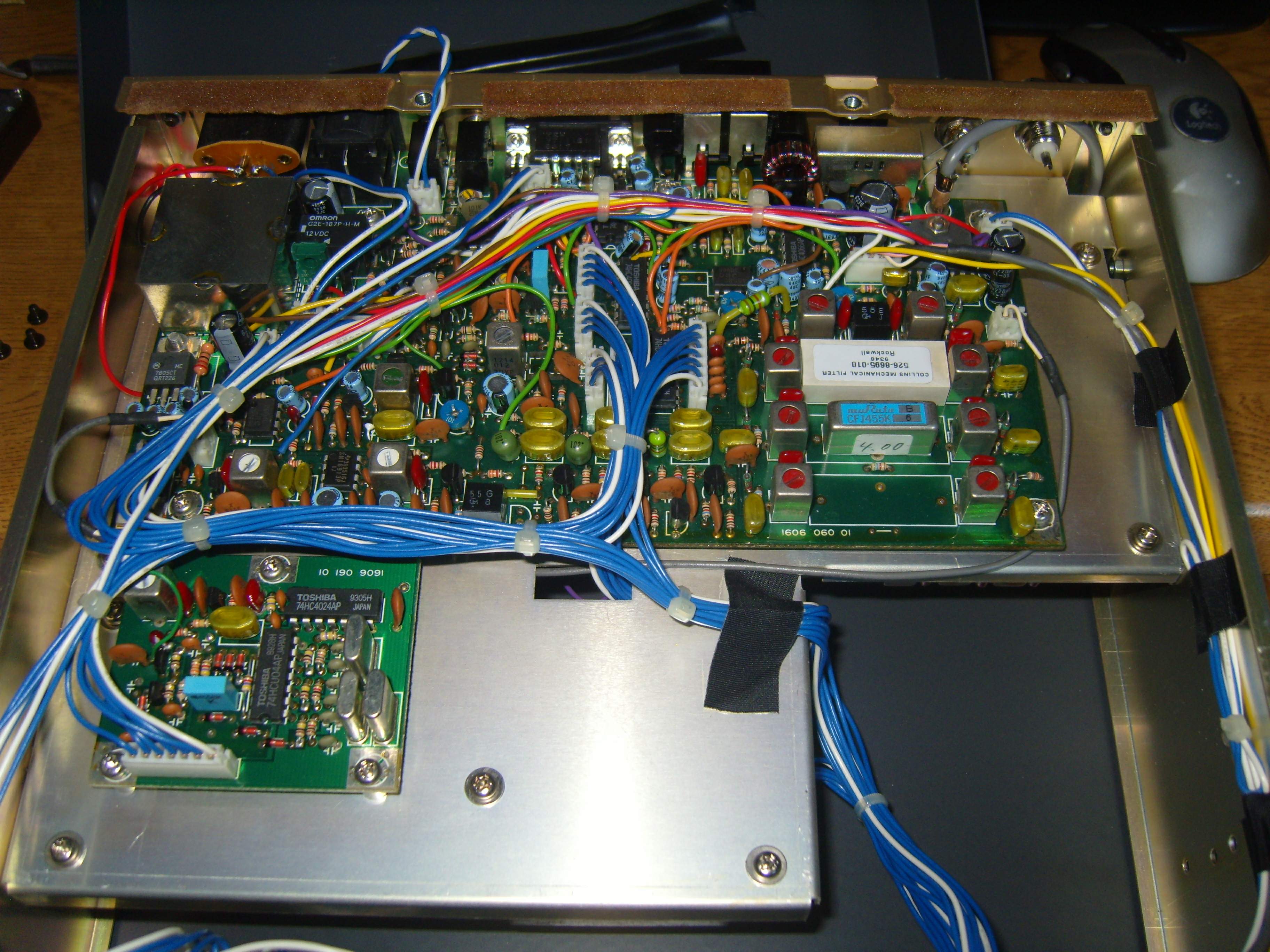

_2.jpg "AOR AR-3030")
