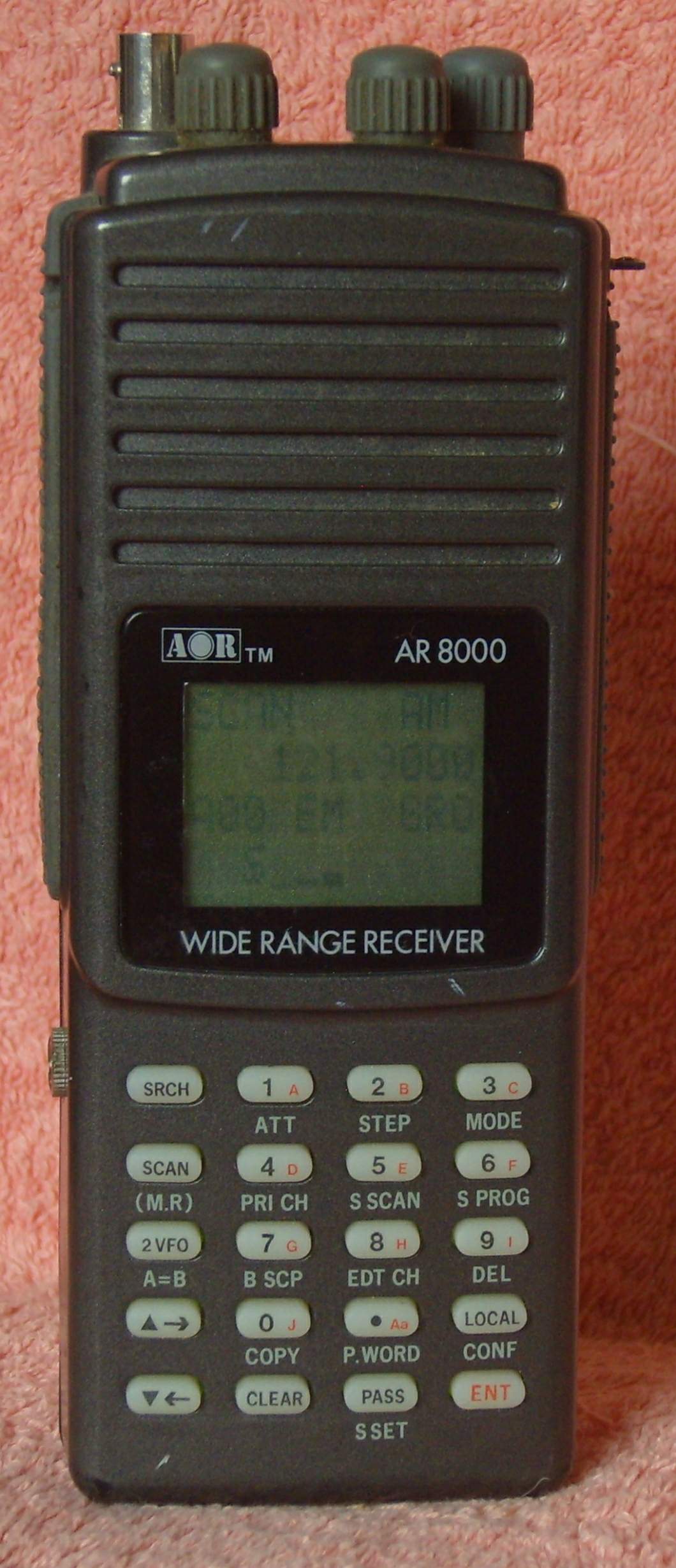

AOR AR8000 (Owned from New)

Type: HF/VHF/UHF Receiver/Scanner
Frequency Range: 500 KHz-1900 MHz
Modes: AM, NFM, WFM, USB, LSB, CW
Memories: 50 Channel X 20 Bank - Total 1000
Pass Channel : 50 Channel X 20 Bank - Total 1000
Search Banks: 20
Priority Ch: One (ch A00) Reprogrammable by user
Scan Rate: Approx. 30 Channels per Second (max)
Search Rate: Approx. 30 Frequencies per Second (max)
Frequency step Size: 50/100/200/500 Hz,
1/2/5/6.25/9/10/12.5/20/25/30/50/100/200/250/500 KHz
or any multiple of 50Hz up to 999.995 KHz
Scan Delay: N/A
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Power Requirments: 4.8V Nicad
6.0V Manganese battery
EXT 9-16 V dc
Current Drain: 160 mA (nominal)
110 mA (standby)
20 mA (power save)
Aerial Input: 50 ohms BNC
Dimensions: 69(W) x 153(H) x 40(D) mm
Weight: 350 gr (incl. NiCads)
Manufactured: 1994-19xx

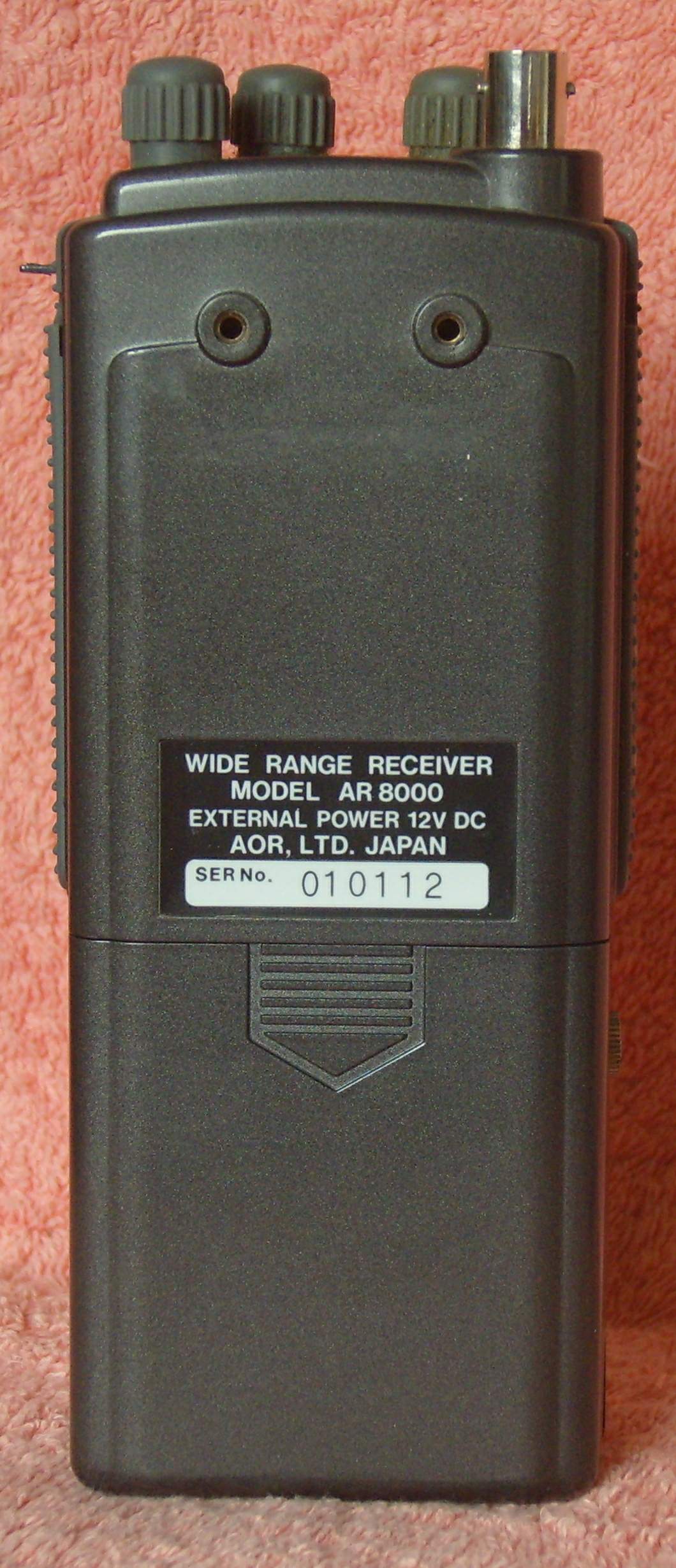

Serial Number: 0 1 0 1 1 2
Modifications: Reaction Tune Socket Fitted
Other: N/A
Related Documents: User manual (490 KB)
Quick Reference (21.4 KB)
CU8232 {Optional PC Control Unit} (490 KB)
