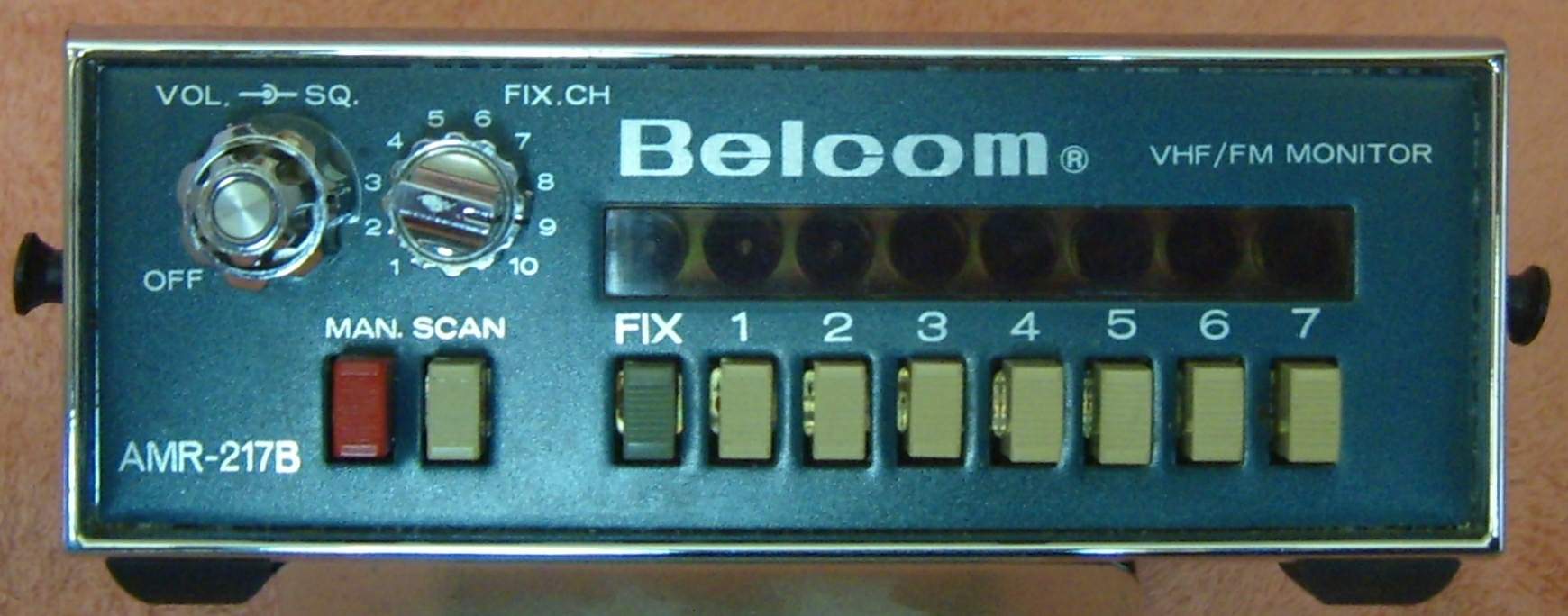

Belcom AMR-217B (Bought S/H)

`
Type: VHF Scanner (Crystal)
Frequency Range: 140-170 MHz
Memories: 7 Scan Channels + 10 Fixed Channels
Crystal Frequencies: .......Fixed.........................Scan
01: 145.725 MHz....1: 145.750 MHz
02: 145.775 MHz....2: 145.675 MHz
03: ...Not..Fitted......3: 145.600 MHz
04: ...Not..Fitted......4: 145.550 MHz
05: ...Not..Fitted......5: 145.500 MHz
06: ...Not..Fitted......6: 145.750 MHz
07: ...Not..Fitted......7: 145.000 MHz
08: ...Not..Fitted......
09: ...Not..Fitted......
10: ...Not..Fitted......
Modes: FM
Scan Rate: N/A
Search Rate: N/A
Delay: N/A
Voltage: 13.8VDC or 240VAC
Current Drain: Max ? mA

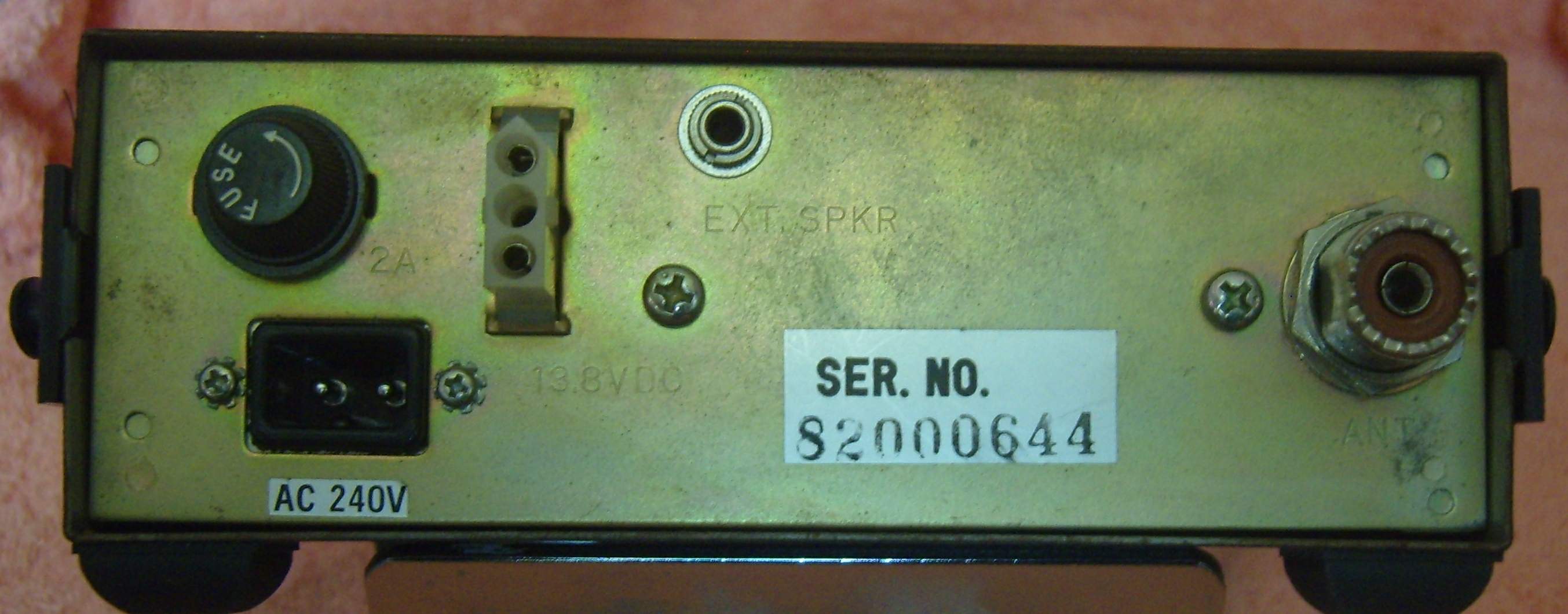

Aerial Input: 50 ohms PL-259
Dimensions (W*H*D): 155(W) x 56(H) x 210(D) mm
Weight: 1.7 Kg
Manufactured: 19xx-19xx
Serial Number: 8 2 0 0 0 6 4 4
Modifications: None
Other: (Bought S/H {Ebay})
Related Documents: Owner's Manual (565 Kb)
