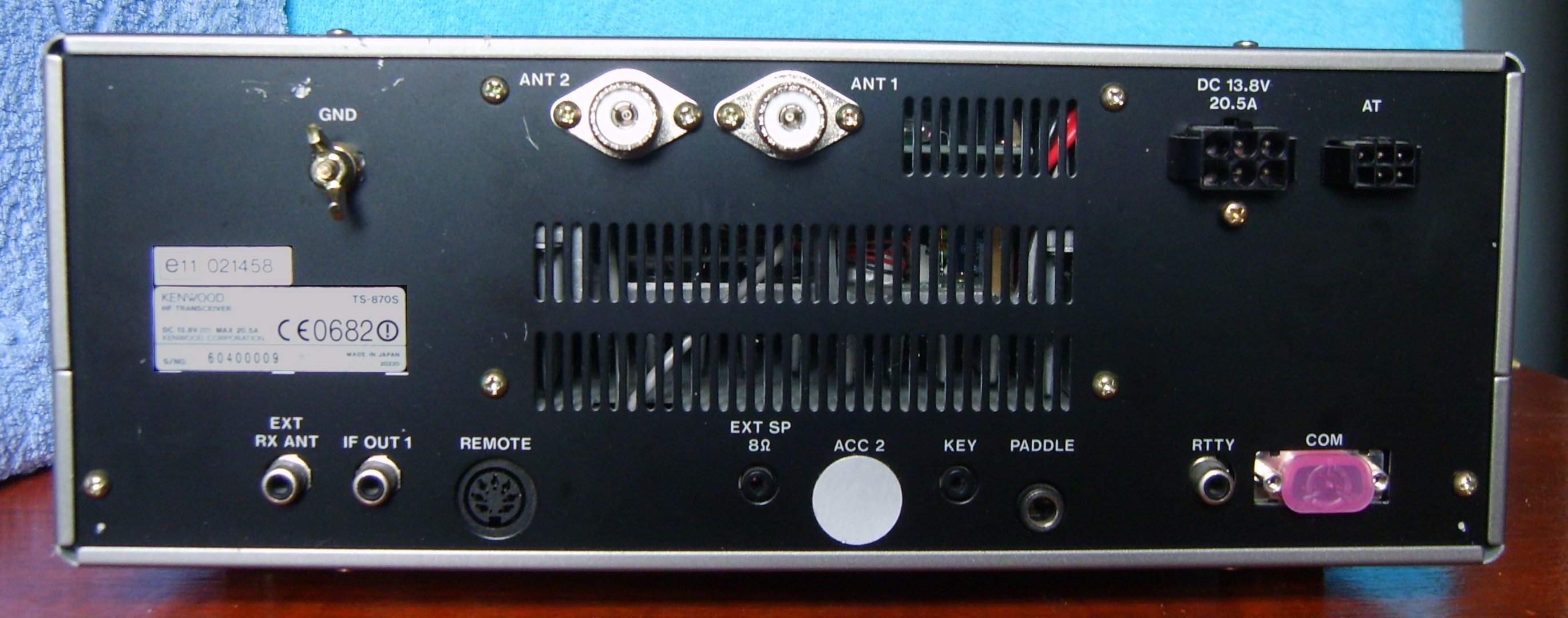

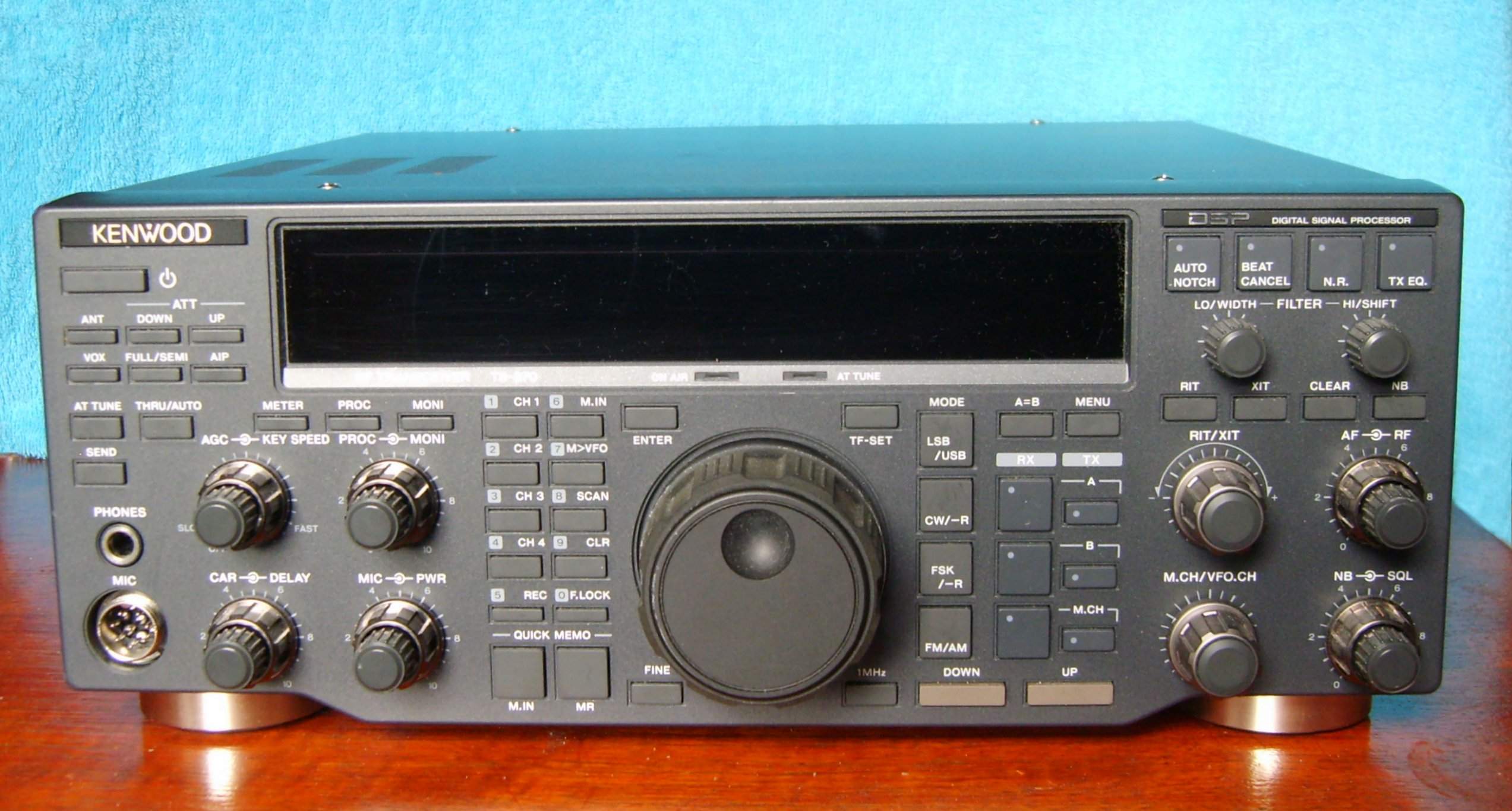

Kenwood TS-870S (Bought S/H {Silent Key Sale})
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC
RX: 0.1-30 MHz |
| Modes: |
AM/FM/SSB/CW/FSK |
| RF Power output: |
Max 100 W (AM 25 W) |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC +/- 15% |
| Current Drain: |
RX: 2 A
|
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
330*120*334 mm |
| Weight: |
11.5 Kg |
| Manufactured: |
2004 |
Serial Number: |
6 0 4 0 0 0 0 9 |
| Modifications: |
TX Range Extended: MARS, CAP, Etc |
| Other: |
DSP. Built-in auto AT: 20-150 ohms |
| Related Documents: |
Instruction Manual (2.63 MB)
In-Depth Manual (1.28 MB) |
 |
