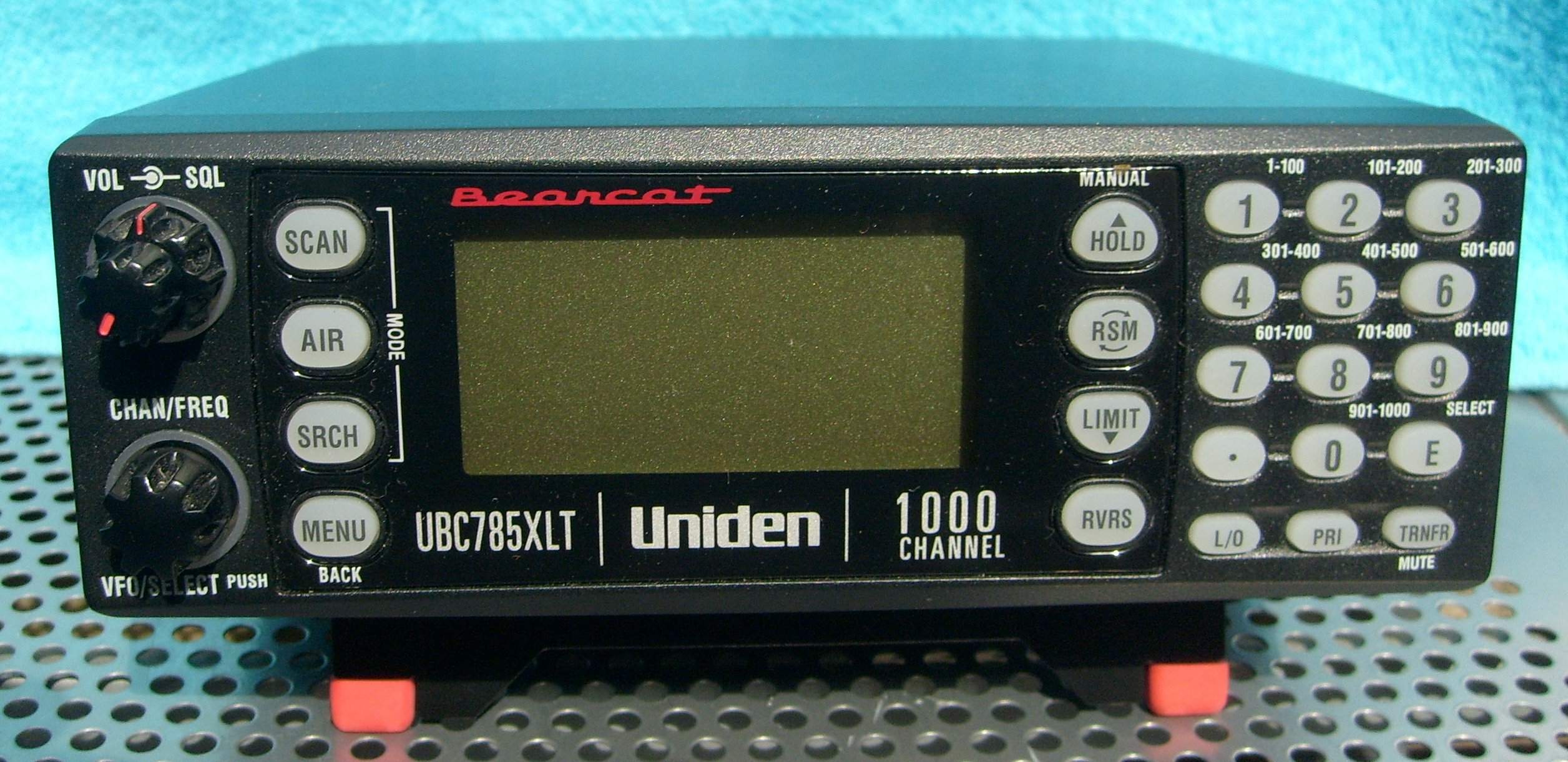

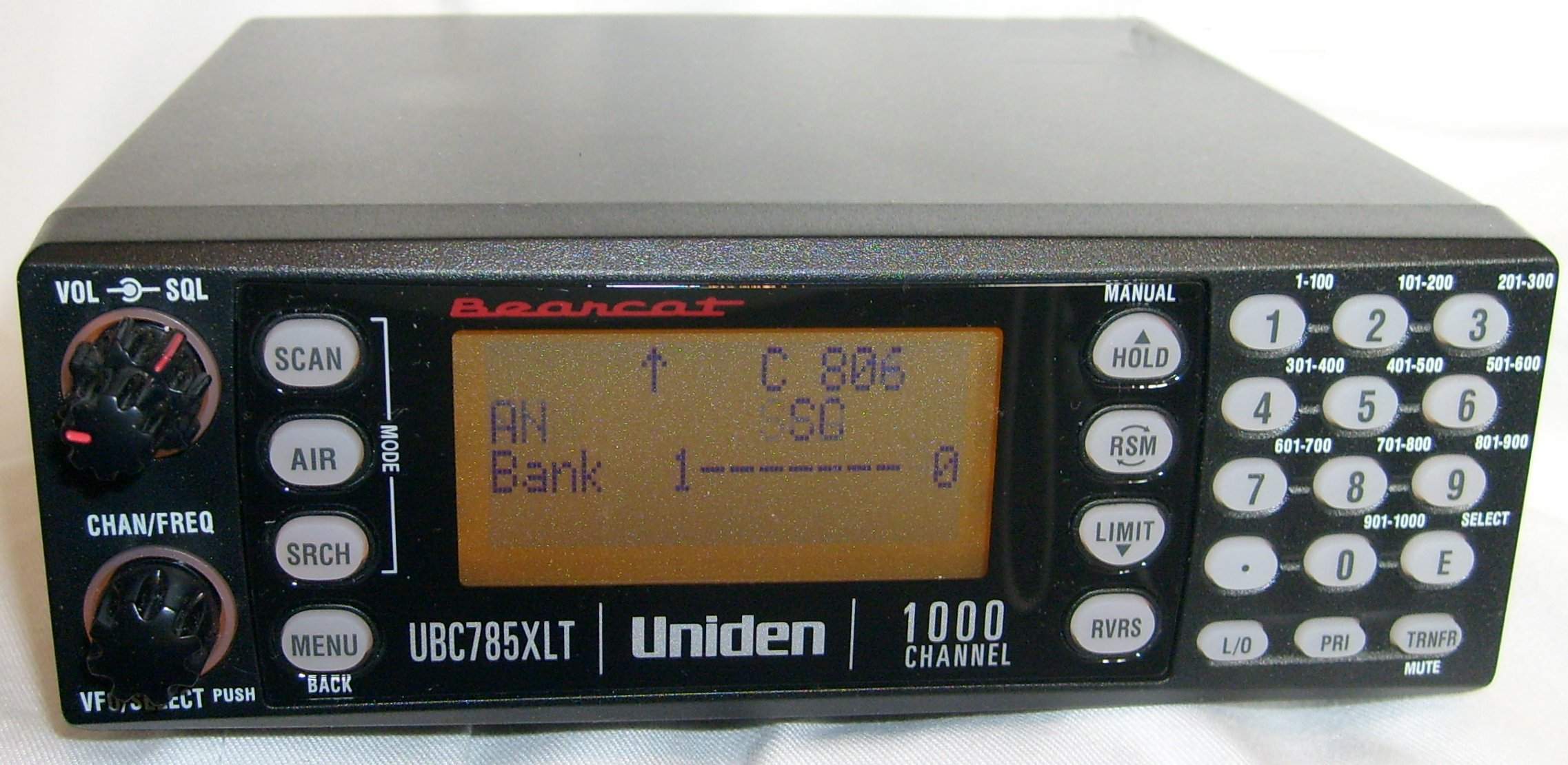

Uniden-Bearcat UBC785XLT {1} (Trunktracker III) (Owned from New)

Type: HF/VHF/UHF Receiver/Scanner
Frequency Range: 25-512 / 806-960 / 1240-1300 MHz
Modes: AM/FM/NFM/WFM (Digital APCO25 option)
Memory Channels: 1000 channels in 10 banks
Search Banks: N/A
Priority Channels: N/A
Scan Rate: 100 ch/s
Search Rate: Normal: 100 steps/s, Turbo: 300 steps/s
Increment Steps: 5/6.25/7.5/8.33/10/12.5/25/50/100 KHz
Scan Delay: N/A
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 13.8 VDC
Current Drain: Max 700 mA
Aerial Input: 50 ohms, BNC
Dimensions: 177(W) x 69(H) x 168(D) mm
Weight: 1.33 Kg
Manufactured: 2006-200x - - Purchased New: May 08 2007
Serial Number: 7 4 0 0 0 2 2 3
Modifications: Discriminator Output socket fitted
Other: Tracks Motorola, EDACS and LTR systems. CTCSS & DCS RS-232C
Related Documents: User Manual (757 KB)
