| Type: |
HF/VHF/UHF Radio Database |
| Frequency Range: |
0-1750 MHz |
| Modes: |
All-mode including sync-AM |
| Memory Channels: |
55 thousand in 234 groups & 99 Search Bands |
| Search Banks: |
N/A |
| Priority Channels: |
N/A |
| Scan Rate: |
50 memories/steps per second |
| Search Rate: |
N/A |
| Increment Steps: |
N/A |
| Scan Delay: |
N/A |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
N/A |

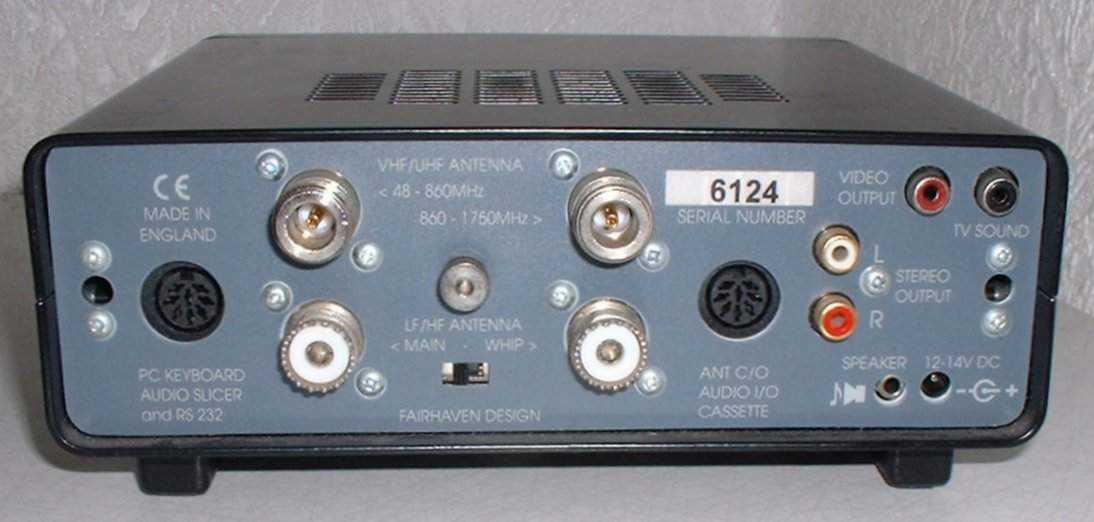

| Aerial Input: |
1: 50 ohms, SO-239
2: N-type (46-860 MHz)
3: N-type (860-1750 MHz)
4: SO-239 for Hi-Z whip |
| Dimensions: |
205(W) x 65(H) x 193(D) mm |
| Weight: |
2.8 Kg |
| Manufactured: |
England/UK, 199x-200x |
| Serial Number: |
6 1 2 4 |
| Modifications: |
|
| Other: |
TV-out, built-in Hamcomm I/F. 54682 memories. Digital sound recording
Remote control. RS-232. Noise cancelling at antenna inputs and much more.
|
| Related Documents: |
User Manual (1.63 MB)
Quick Reference manual (49.5 KB)
Sales Leaflet (Fairhaven Electronics) (1.86 MB)
Sales Leaflet (SMC) (566 KB)
Website Brochure(10.0 MB) |
