| Type: |
HF/VHF/UHF Receiver/Scanner |
| Frequency Range: |
25-520 / 760-1300 MHz
5 / 12.5 / 30 / 50 KHz steps |
| Modes: |
AM/FM/WFM |
| Memory Channels: |
400 |
| Search Banks: |
N/A |
| Priority Channels: |
One (Channel 1) |
| Scan Rate: |
N/A |
| Search Rate: |
N/A |
| Increment Steps: |
N/A |
| Scan Delay: |
N/A |
| Sensitivity: |
AM (20 dB S/N): 25-1000 MHz 2 uV, 1000-1300 MHz 5 uV
FM (20 dB S/N): 25-1000 0.5 uV, 1000-1300 MHz 3 uV
WFM (30 dB S/N): 25-1000 MHz 3 uV, 1000-1300 MHz 10 uV |
| Selectivity: |
AM/FM: 18 KHz (-6 dB), 30 KHz (-50 dB)
WFM: 300 KHz (-6 dB), 600 KHz (-60 dB) |
| Image rejection: |
N/A |
| Voltage: |
12 VDC or Mains |
| Current Drain: |
N/A |
| Aerial Input: |
50-75 ohms, BNC |
| Dimensions: |
220(W) x 76(H) x 205(D) mm |
| Weight: |
2.2 Kg |
| Manufactured: |
Japan, 199x-199x (By GRE) (Sold By TANDY Shops) |
| Serial Number: |

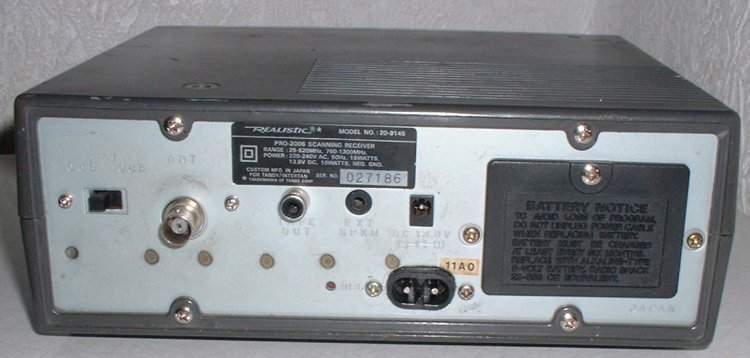

0 2 7 1 8 6 |
| Modifications: |

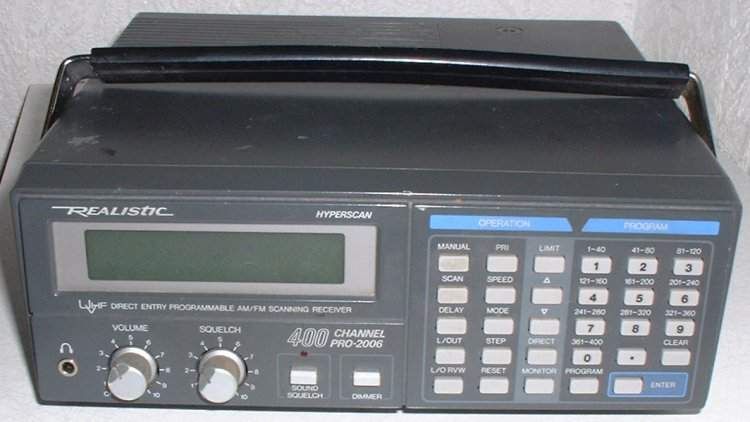

Carrying handle fitted
Figure 8 Mains socket fitted
Discriminator Output socket fitted
Increased headphone audio |
| Other Features: |
Sound squelch, Tape out. |
| Comments: |
Excellent Scanner |
| Related Documents: |
User Manual (0.99 Mb)
Service manual (10.1 Mb)
Schematics (389 Kb) |
