Uniden-Bearcat UBC800XLT {1} (Trunktracker III) (Owned From New)

Type: HF/VHF/UHF Receiver/Scanner
Frequency Range: 25-512 / 806-960 / 1240-1300 MHz
Modes: AM/FM/WFM
Memory Channels: 6000 dynamically allocated memories
Search Banks: 10 Custom Search Ranges
6 Preprogrammed Service Searches
Priority Channels: N/A
Scan Rate: N/A
Search Rate: N/A
Frequency Steps (kHz) : 5/6.25/8.33/10/12.5/15/20/25/50/100/Auto KHz
Scan Delay: N/A
Voltage: 11-16.6 VDC
Current Drain: Max 500 mA

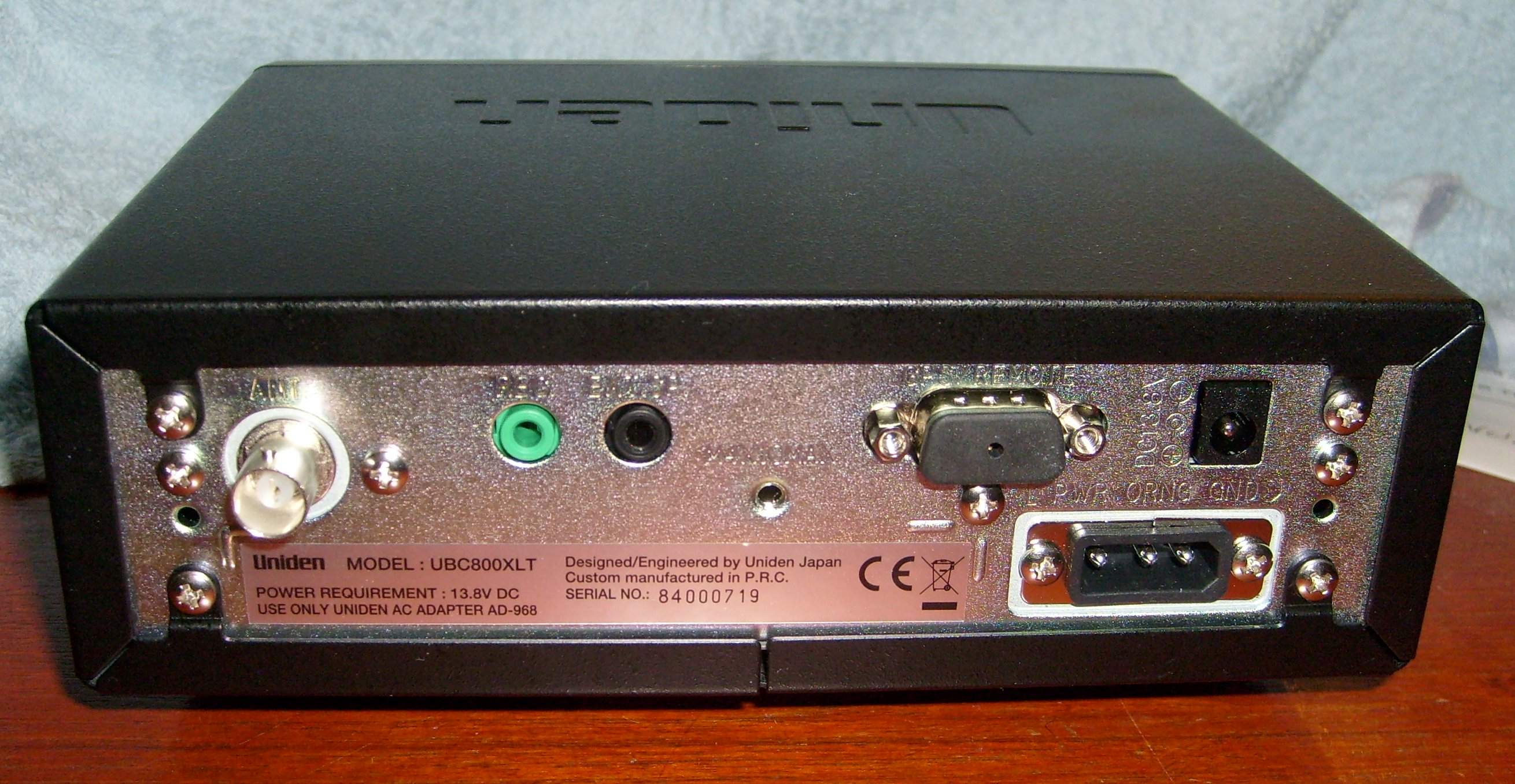

Impedance: 50 ohms, BNC
Dimensions: 184(W) x 151(D) x 56(H) mm
Weight: 1.57 Kg
Manufactured: 2008-200x- - Purchased New: April 01 2009
Serial Number: 8 4 0 0 0 7 1 9

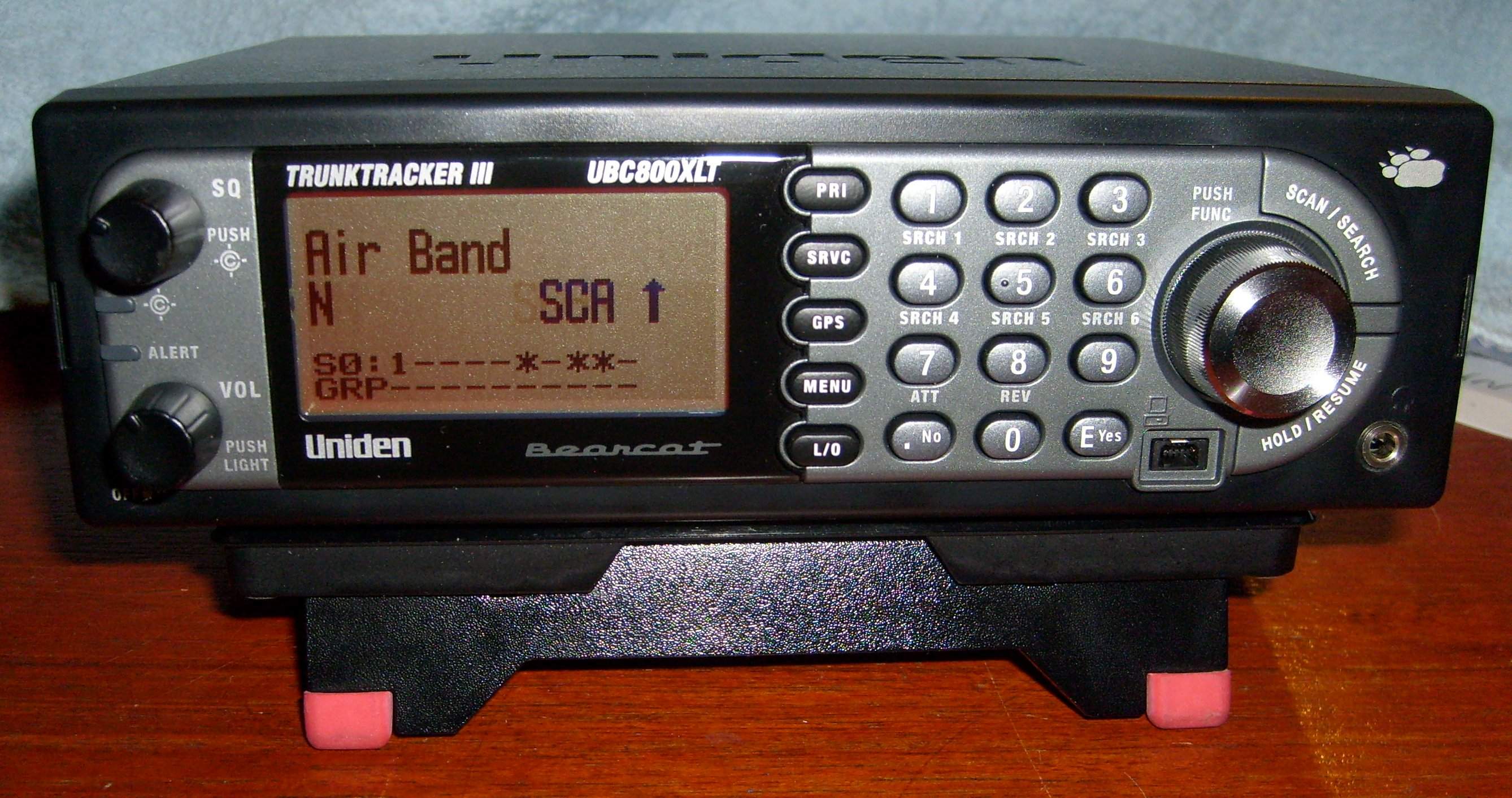

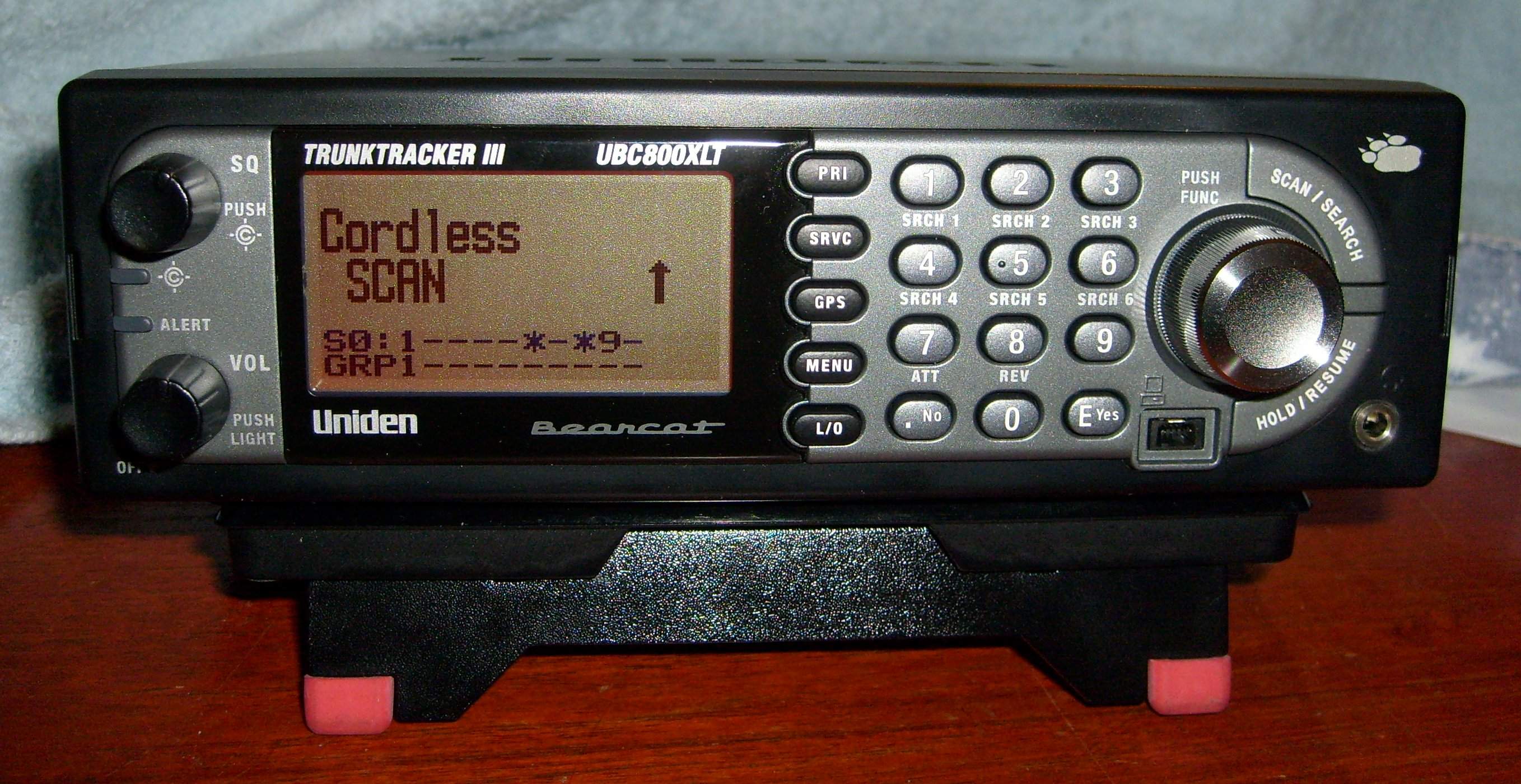

Modifications: Fitted FlipDown Front Feet from UBC780/785 Scanner Range
Uniden have (Unfortunately) done away with them on the UBC800XLT
Other: Beartracker warning system. "Close call" RF capture
16 Character Text input per name
RS-232C. Tracks Motorola. EDACS, and EF Johnson systems.
GPS-enabled for location-related scanning. When a GPS-unit is connected, it
can also alert at areas of special interest, such as dangerous intersections,
school zones or general points of interest (fixed speeding cameras anyone?).
New price 2008: £289
12.5 and 8.33kHz Airband steps
Related Documents: User Manual (5.33 MB)
Leaflet (1.41 MB)
AOR Leaflet (121 kb)
