| Type: |

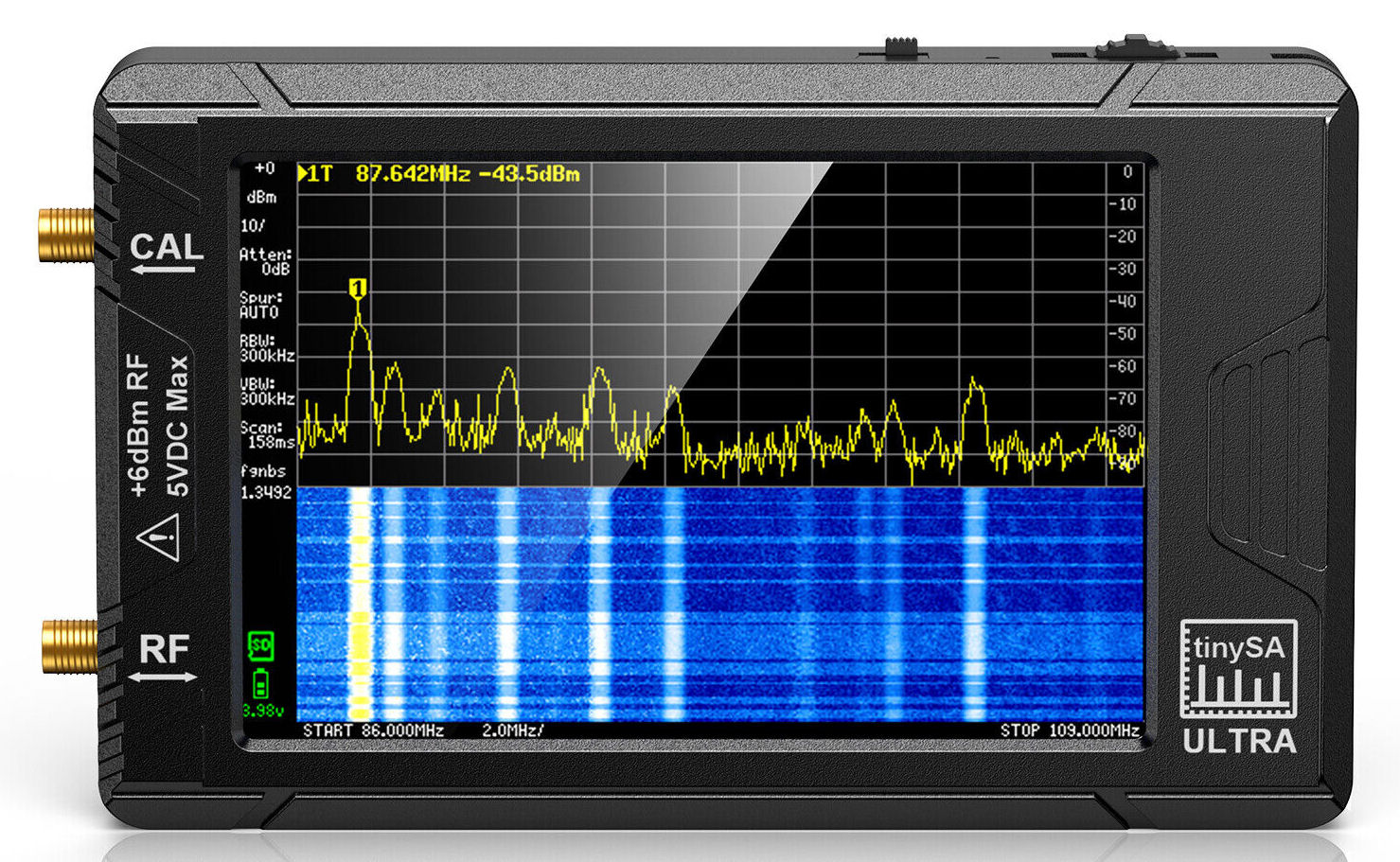

Spectrum Analyzer/Receiver |
| Frequency Range: |
100kHz to 5.3GHz |
| Modes: |
Analog |
| Communication Interface: |
USB-CDC(Type-C)，UART-TTL(2.54mm Connector) |
| Voltage: |
Internal: Li-polymer 3.7V 3000mAh Battery |
| Current Drain: |
Max: 330mA |
| Aerial Input: |
Front:2x SMA |
| Dimensions: |
117 x 72 x 23 mm (Excluding Protruding Parts) |
| Weight: |
?? Kg |
| Manufactured: |
China: 202-20xx
Purchased New: 27 Dec, 2023 (£135.99) |
| Serial Number: |
SU-23124223 |
| Modifications: |
None |
| Other: |
4.0 inch 480 x 320 Large Touchscreen
PC Interface

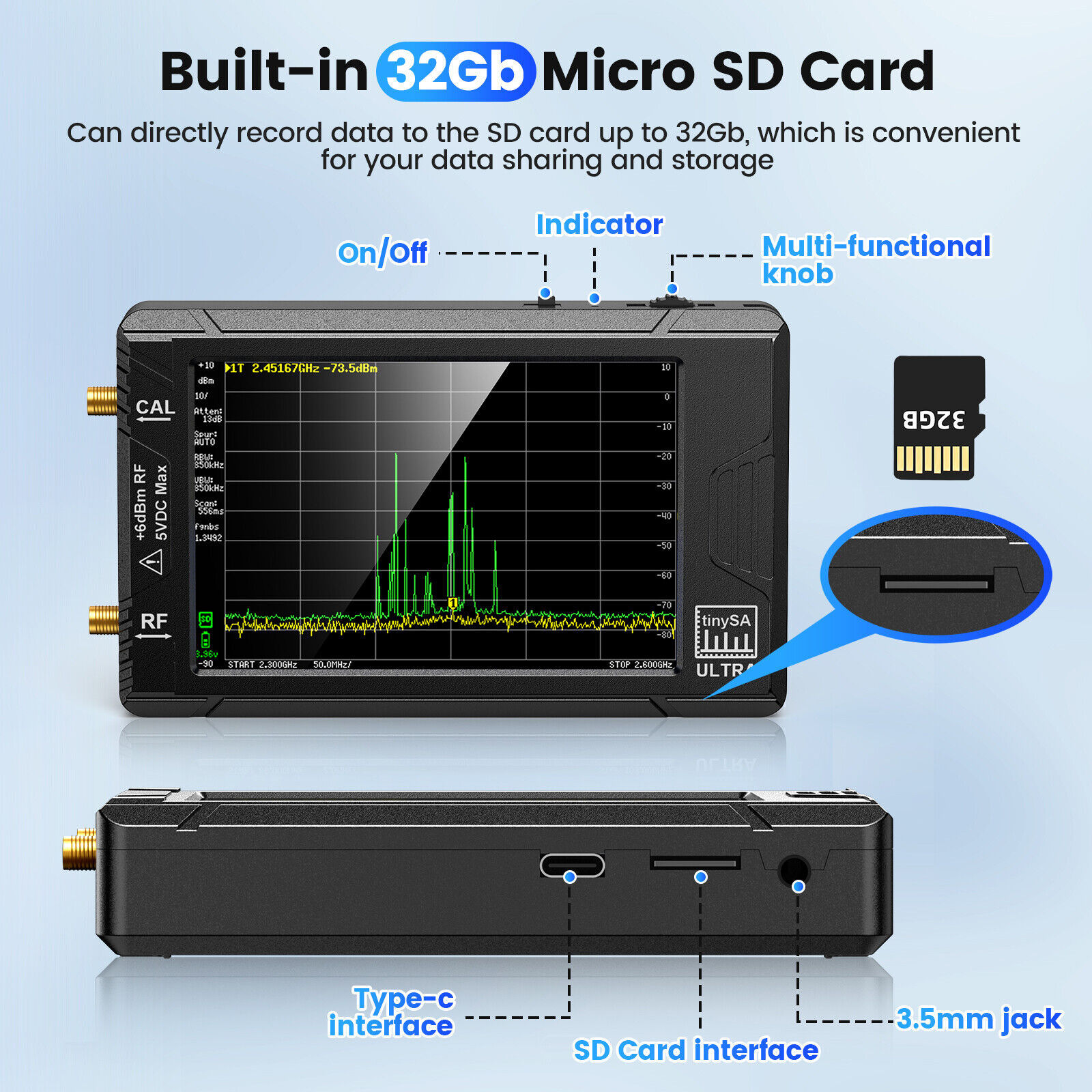

32Gb Micro SD card included for recording
3.5mm Audio Socket for Monitering |
