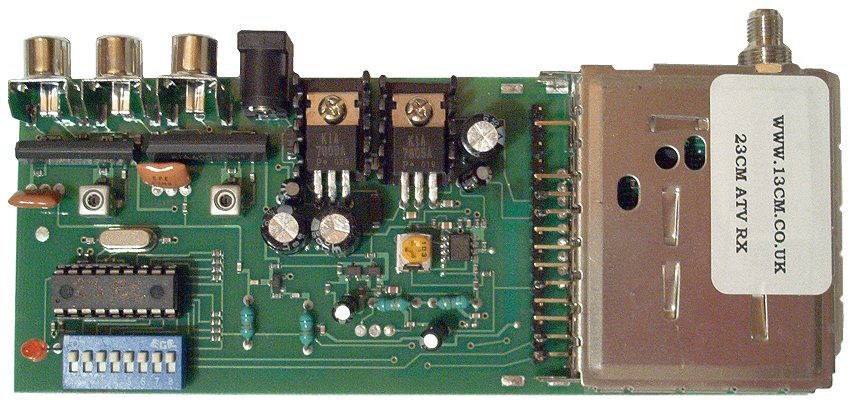

Comtech 23 cm RX

Type: Amateur UHF ATV Receiver
Frequency Range: 1240-1375 MHz (With DTECH custom PIC MCU)
Modes: FM-video. 6 and 6.5 MHz Audio sub-carriers
Voltage: 12-15 VDC
Current Drain: Max 500 mA
Impedance: 75 ohms, SMA
Dimensions (W*H*D): ? mm
Weight: ? Kg
Manufactured: Taiwan, 200x-2009 (Discontinued)
Other: Demo board, ready to use. No de-emphasis.
New price 2009 in the UK: 36.00
Related Documents: Dip switch settings (7 KB)
