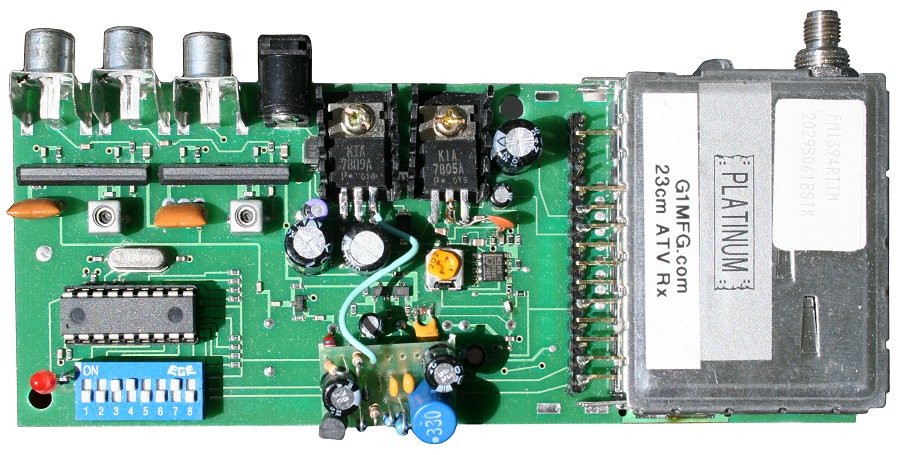

Comtech FM1394RTIM "Platinum"
| Type: |
Amateur UHF ATV Receiver |
| Frequency Range: |
1240-1367.5 MHz (With G1MFG custom PIC16F84) |
| Modes: |
FM-video. 6 and 6.5 MHz Audio sub-carriers |
| Voltage: |
12-15 VDC |
| Current Drain: |
Max 400 mA |
| Impedance: |
75 ohms, SMA |
| Dimensions (W*H*D): |
148*15*59 mm |
| Weight: |
90 gr |
| Manufactured: |
Taiwan, 2001-200x (Discontinued) |
| Other: |
Demo board, ready to use. No de-emphasis. |
| Related Documents: |
Tuner datasheet (115 KB)
Demo board schematic (36 KB) |
|
