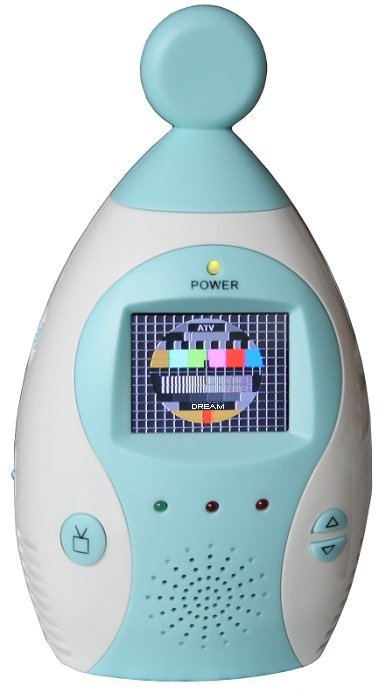

Invent-Tech BC-001

Type: UHF video Receiver/baby monitor
Frequency Range: 2.4 GHz (3 channels)
Ch1: 2.414 GHz
Ch2: 2.432 GHz
Ch3: 2.450 GHz
Modes: FM-video. Mono audio subcarrier
Sensitivity: N/A
Selectivity: N/A
Voltage: 7.2-9 VDC (6*R6/AA) or 9 VDC external
Current Drain: Max 230 mA
Impedance: Built-in 1/4-wave wire antenna
Dimensions (W*H*D): 88*164*56 mm
Weight: 310 gr (with batteries)
Manufactured: China/Hong Kong, 200x-200x
Other: 1.8" color LCD. A/V out jack
Silly design for ham use, but it works! On the other hand,
you can always put the electronics in a new housing and
add a scanning circuit.
Related Documents: Video squelch removal (137 Kb)
