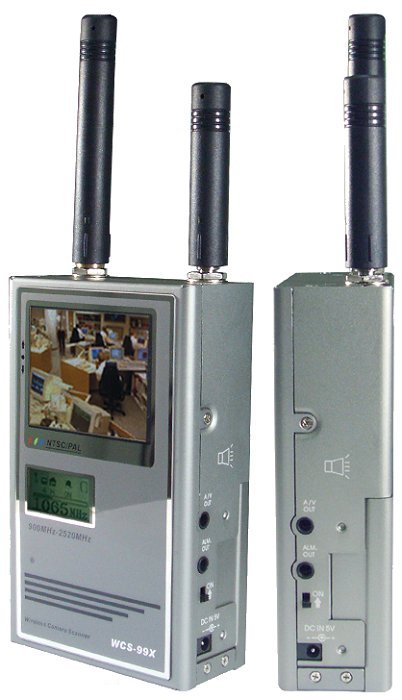

Misumi WCS-99X

Type: UHF video Receiver/scanner/"Camera detector"
Frequency Range: 900-2520 MHz
Modes: FM-video (PAL/NTSC). 5.5 or 6 MHz Audio sub-carrier
Sensitivity: -60 dBm (H)
-50 dBm (MH)
-40 dBm (M)
-30 dBm (ML)
-20 dBm (L)
Selectivity: N/A
Voltage: 4.8-6 VDC (4*R6/AA) or 5 VDC external
Current Drain: Max ? mA
Impedance: 50 ohms, 2 * SMA
Dimensions (W*H*D): 74*120*35 mm
Weight: 240 gr
Manufactured: 2007-200x
Other: 2.5" color TFT. Scans whole range in 15 seconds! AV output jack
S-meter and frequency on separate LCD. Beeper alert. 5 sensitivity settings.
Super for ham use on 23 & 13 cm, but also for monitoring of domestic
video senders, surveillance cameras and more.
Related Documents: Quick manual (204 Kb)
