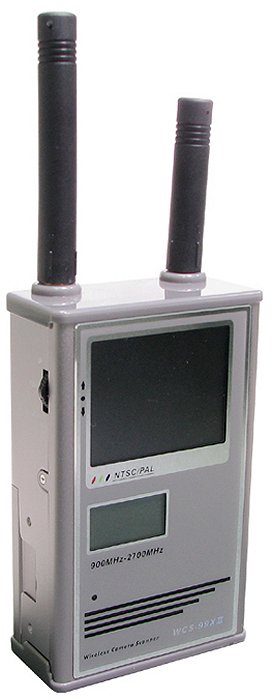

Misumi WCS-99XII-S

Type: UHF video Receiver/scanner/"Camera detector"
Frequency Range: 900-2700 MHz
Modes: FM-video (PAL/NTSC). 5.5-6.5 MHz audio sub-carrier (auto detect)
Sensitivity: N/A
Selectivity: N/A
Voltage: 4.8-6 VDC (4*R6/AA) or 5 VDC external
Current Drain: Max 650 mA
Impedance: 50 ohms, 2 * SMA
Dimensions (W*H*D): 74*123*35 mm
Weight: 280 gr
Manufactured: 2008-200x
Other: 2.5" color TFT. Scanning. AV output jack
S-meter and frequency on separate LCD
Super for ham use on 23 & 13 cm, but also for monitoring
of domestic video senders, surveillance cameras and more.
