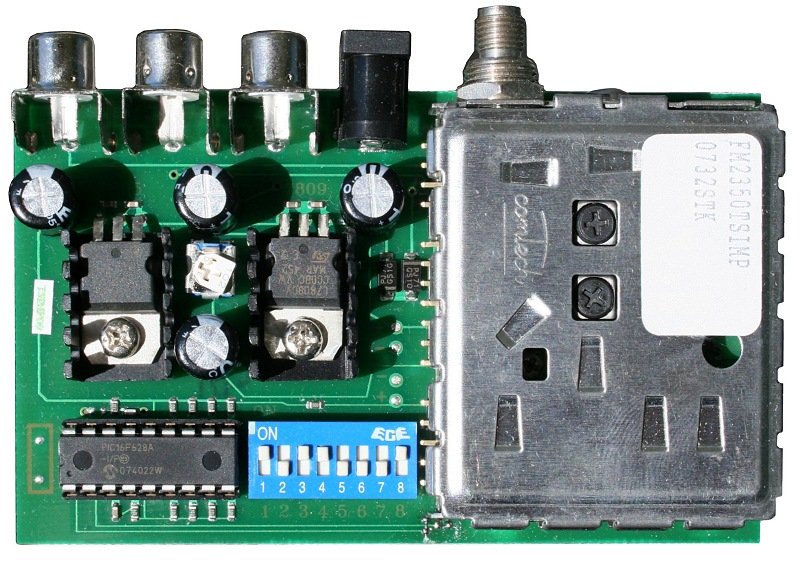

Comtech FM2350TSIMP

Type: Amateur UHF ATV Transmitter
Frequency Range: 2300-2555 MHz (1 MHz steps) (With DTECH custom PIC16F628A)
Modes: FM-video, Audio sub-carriers 6.0 and 6.5 MHz
RF Power Output: 200 mW
Voltage: 12-15 VDC
Current Drain: Max 500 mA
Impedance: 75 ohms, SMA
Dimensions (W*H*D): 98*15*59 mm
Weight: 70 gr
Manufactured: Taiwan, 2001-2009 (Discontinued)
Other: Demo board, ready to use. No pre-emphasis.
New price 2009 in the UK: 65.00
Related Documents: Modulator datasheet (101 KB)
Dip switch settings (8 KB)
