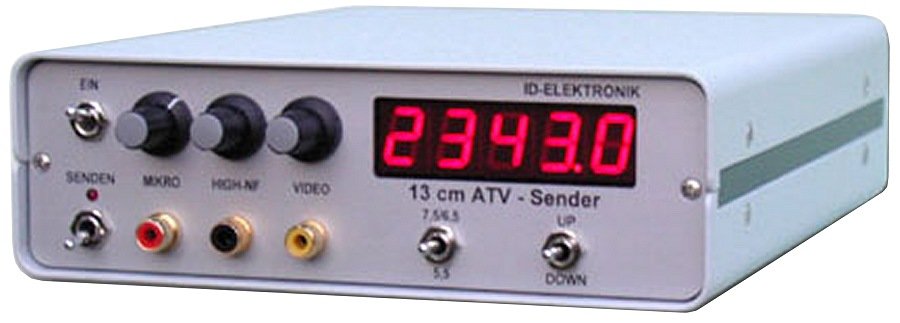

ID-Elektronik 13 cm ATV TX

Type: Amateur UHF ATV Transmitter
Frequency Range: 2320-2450 MHz
Modes: FM-video, Audio sub-carriers 5.5 MHz, or 6.5 and 7.5 MHz
RF Power Output: 1.5 W
Voltage: 12-15 VDC
Current Drain: ? A
Impedance: 50 ohms, N-type
Dimensions (W*H*D): 225*55*175 mm
Weight: ? Kg
Manufactured: Germany, 200x-20xx
Other: New price 2009 in Germany, 845.00 Euro
