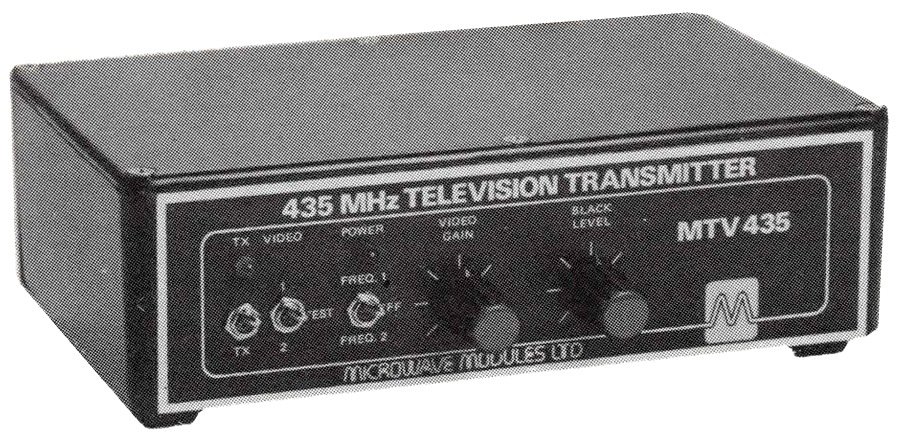

Microwave Modules MTV-435

Type: UHF ATV Transmitter
Frequency Range: 435 MHz
Modes: AM-video. No audio sub-carrier
RF Power Output: 20 W Peak Sync Power
Voltage: 11-13.8 VDC
Current Drain: Max 4 A
Impedance: 50 ohms, BNC/N-type
Dimensions (W*H*D): 187*53*120 mm
Weight: 900 gr
Manufactured: England, 19xx-19xx (Discontinued)
Other: 2 channels, XTAL. Built-in pattern test generator
