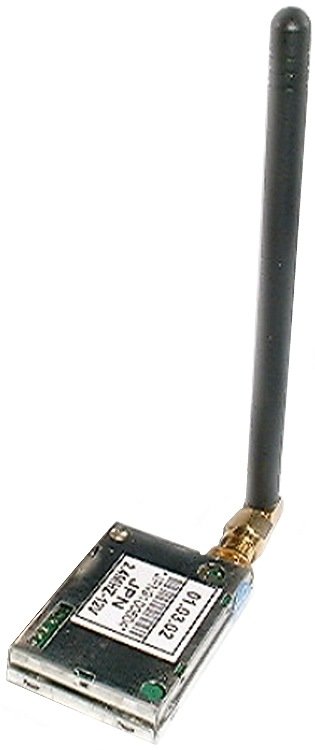

Misumi MST-AB010M

Type: UHF video Transmitter
Frequency Range: 2.4 GHz (4 channels)
Ch1: 2.413 GHz
Ch2: 2.432 GHz
Ch3: 2.451 GHz
Ch4: 2.470 GHz
Modes: FM-video. 5.5 MHz audio sub-carrier
RF Power Output: 100 mW
Voltage: 12 VDC
Current Drain: Max 140 mA
Impedance: 50-75 ohms, SMA
Dimensions (W*H*D): 39*6*27 mm
Weight: 26 gr
Manufactured: 200x-200x
