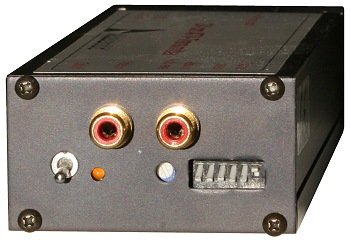

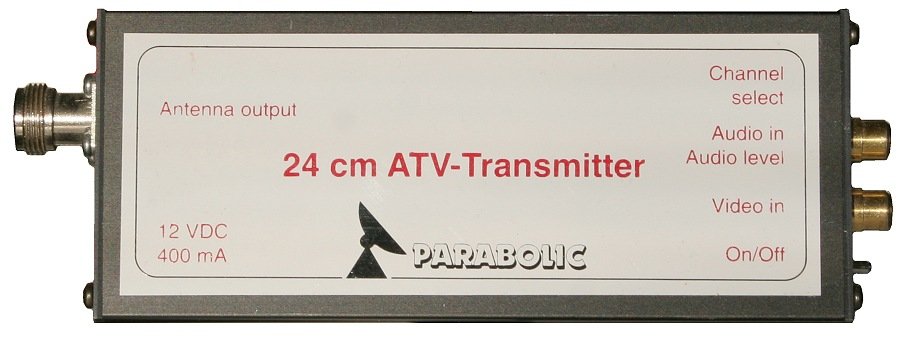

Parabolic ATV-TX

Type: Amateur TV transmitter
Frequency Range: 1240-1279 MHz (1 MHz steps)
Modes: FM-video 27 MHz. Audio sub-carrier (mono)
RF Power Output: 200 mW
Voltage: 11-14 VDC
Current Drain: Max 400 mA
Impedance: 50 ohms, N
Dimensions (W*H*D): 157*35*64 mm
Weight: ? Kg
Manufactured: Sweden, 199x-2006 (By Labetech AB)
Other:
Related Documents: DIP switch settings (90.2 Kb)
