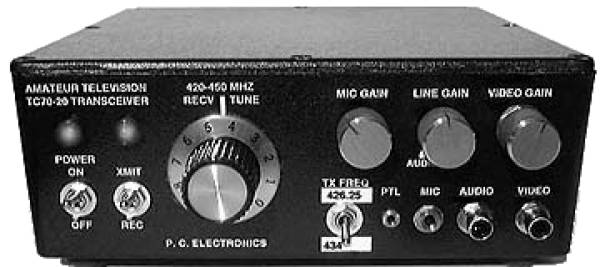

PC Electronics TC70-20

Type: Amateur TV Transceiver
Frequency Range: 420-450 MHz (RX)
Modes: AM-video. Audio sub-carrier (mono)
RF Power Output: 20 W
Voltage: 11-14 VDC
Current Drain: Max 4 A
Impedance: 50 ohms, N
Dimensions (W*H*D): ? mm
Weight: ? Kg
Manufactured: USA, 199x-200x
Other: Transmitter is XTAL controlled, 2 channels switchable
New price 2001 in the US: $439.25
