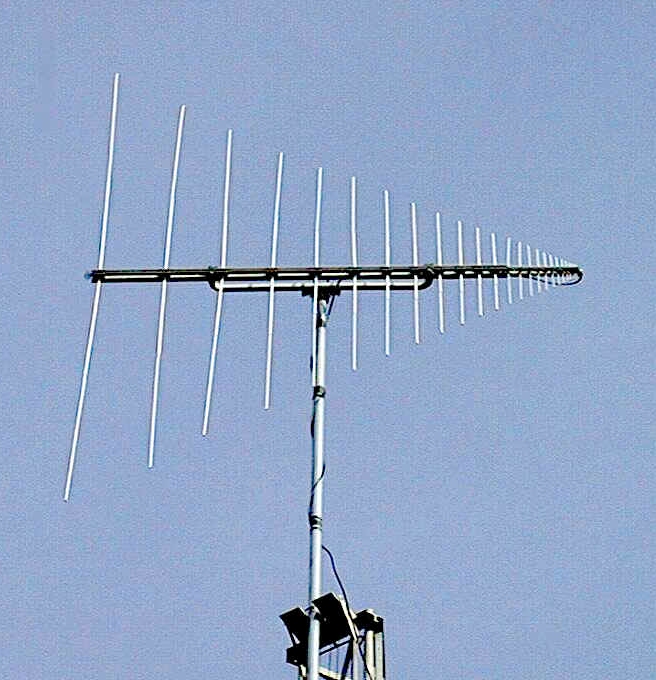

Create CLP~5130-1N

Type: VHF/UHF log periodic Aerial, 2*15 elements
Band(s): 50-500 MHz
Gain: 10-12 dBi, f/b 15 dB
Max power: 500 W PEP
Impedance: 50 ohms
Dimensions: Boom: 6.56 ft
Longest element: 9 ft 8 inch
Weight: 10 Kg
Manufactured: 199x-xxxx
Other: VSWR: 2.0 : 1 or less
