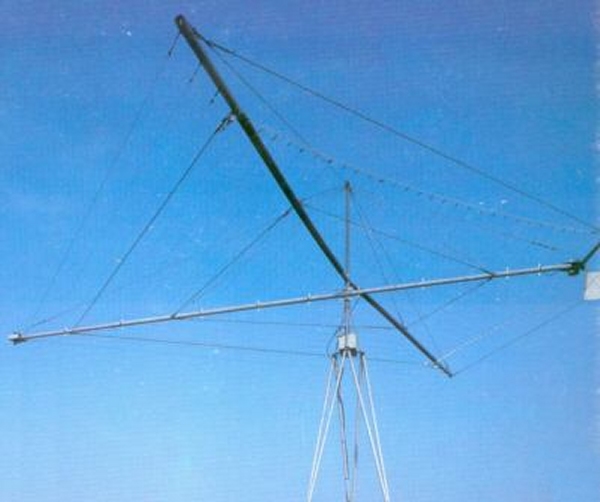

Granger H.F. Log Periodic Aerial 2-30

Type: HF log periodic Aerial
Band(s): 2-30 MHz
Gain: Max 7 dBi @ 6.2MHz
12 db @ 30 MHzi
Forward to rear Ratio 12.0db
Max power: 2 KW
Impedance: 50 ohms
Dimensions: Boom: 9.74 m
Longest el: 11.58 m
Weight: ?
Manufactured:
Other:
Related Documents:
