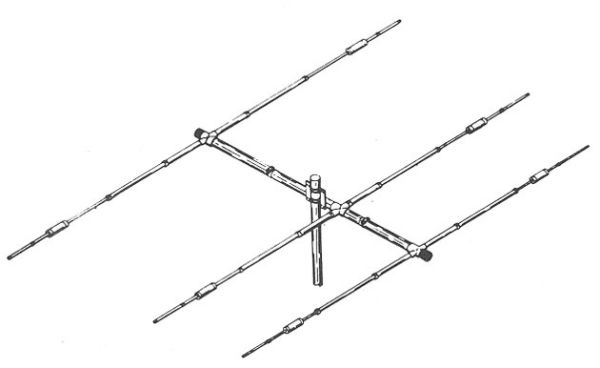

Maco SY33

Type:Amateur HF yagi, 3 elements
Band(s):20/15/10 m
Gain:8 dBi, f/b 20 dB
Max power:2 KW
Impedance:50 ohms, SO-239
Dimensions:Boom: 4.3 m
Longest el: 8.2 m
Weight:18 Kg
Manufactured:199x-200x
Other:40 m option
