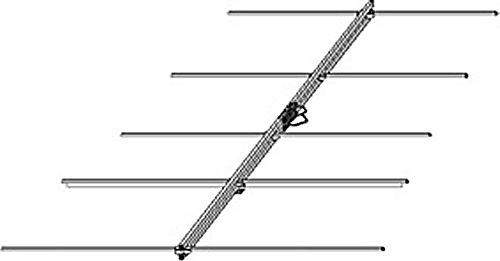

Vårgårda 5EL6
Band(s):
6 m
Gain:
9 dBd, f/b 20 dB
Type:
Yagi, 5 elements
Max power:
1 KW
Impedance:
50 ohms
Dimensions:
Boom: 3.6 m
Longest el: 3.1 m
Weight:
5.5 Kg
Manufactured:
Sweden, 19xx-19xx
Other:
Related Documents:
