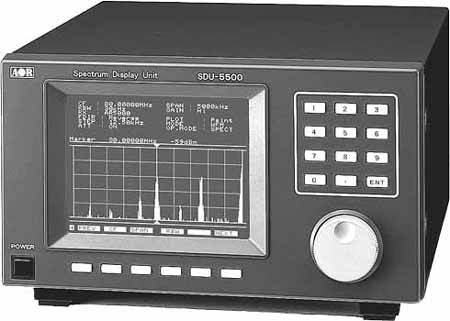

AOR SDU-5500

Type: Spectrum Display Unit
Input Frequency: 10.7 MHZ
Maximum frequency span: 10 MHZ
Frequency accuracy: 600Hz
Frequency resolution: 4, 32, 64, 128 KHz
Input level Range: +0 dBm to -90dBm
Display dynamic range: 60dBm
Frequency accuracy: + / - 600Hz
Level accuracy: + / - 2dB
Input impedance: 50 ohms
Display: 5 inch colour TFT display

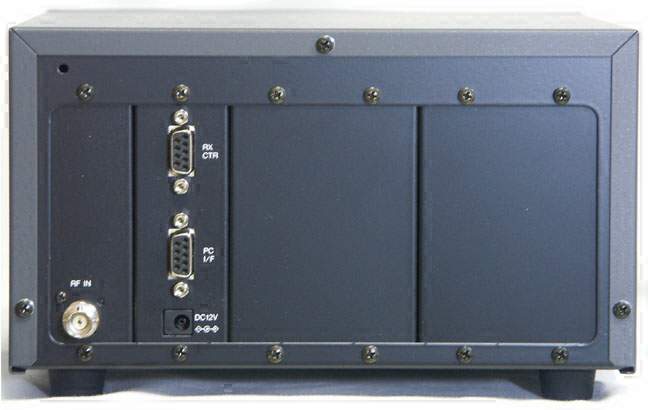

Serial ports: 2 RS-232C ports (for receiver and PC control)
Power requirement: 12 V DC, 900mA (max)
Controls: 26 keys and one rotating dial
Dimensions: 220 (W) x 120 (H) x 195 (D) (mm)
8.7(W) x 4.7 (H) x 7.7 (D) (inches)
Projections not included
Compatibility: Interactive with all AOR AR5000 and AR8600 series receivers and AR-ONE.
May be compatible with other receivers that feature wideband 10.7 MHz IF output.
(No warranty is made as to compatibility with receivers from other manufacturers)
Level accuracy: + / - 2dB
