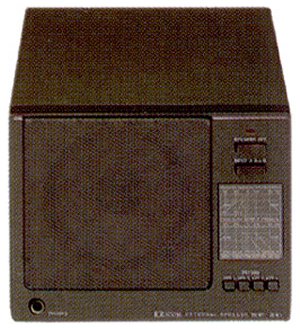

Icom SP-20

Type: External speaker with filter
Max input power: 5 W
Impedance: 8 ohms
Frequency response: 100-9000 Hz
Filter cut-off: HPF1: 300 Hz @ -3 dB point
HPF2: 600 Hz @ -3 dB point
LPF1: 2.4 KHz @ -3 dB point
LPF2: 800 Hz @ -3 dB point
Filter response: -6 dB/octave
Voltage:
Current Drain:
Dimensions (W*H*D): 200*150*343 mm
Weight: 3Kg
Manufactured: Japan, 19xx-19xx
Other:
Related Documents:
