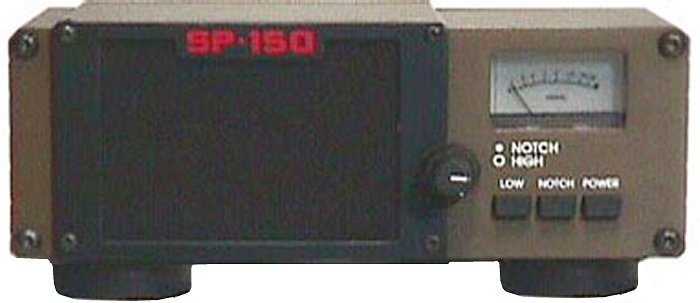

Lowe SP-150 - (Matching Unit to the Lowe HF-150 Receiver.)



Type: Amplified speaker and S-meter unit
Max ouput power: 10 W
Impedance: 4 ohms
Frequency response: ?-? Hz
Filter response: High pass: 500 Hz fixed 6 dB/octave (500 Hz -6 dB, 300 Hz -20 dB)
Low pass: 0.8-6 KHz variable 24 dB/octave (2.5 KHz -6 dB, 7 KHz -40 dB)
Notch: 0.4-4 KHz variable >40 dB (BW: 100 Hz -6 dB, 15 Hz -20 dB)
Voltage: 11-15 VDC
Current Drain: 500 mA
Dimensions (W*H*D): 185*80*175 mm
Weight: ? Kg
Manufactured: 1994-199x
Other:
Related Documents: User Manual (231 KB)
