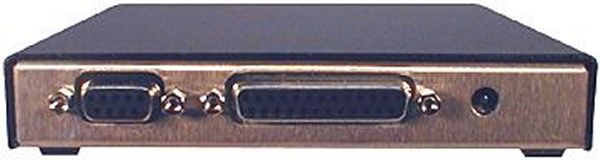

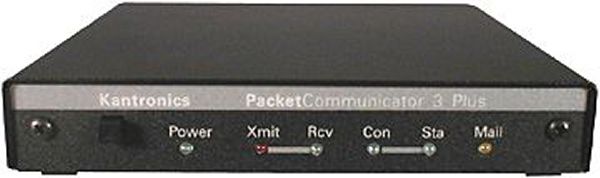

Kantronics KPC-3 Plus

Type: Packet
Modes
(depending on firmware):
Packet, WeFax, KISS, XKISS, Host, GPS, Modem (RX only)
GPS/APRS compatible: Yes
Mailbox: 100 Kb, expandable to 512 Kb
Radio ports: 1
Data rate: 300, 400, 600 & 1200 bd
Voltage: 6-25 VDC external or 9 VDC internal
Current Drain: 15-30 mA
Dimensions (W*H*D): 133*21*133 mm
Weight: 320 gr
Manufactured: USA, 2000-200x
Other: Telemetry and remote control. 2 A/D inputs.
Related Documents: User Manual (980 Kb)
