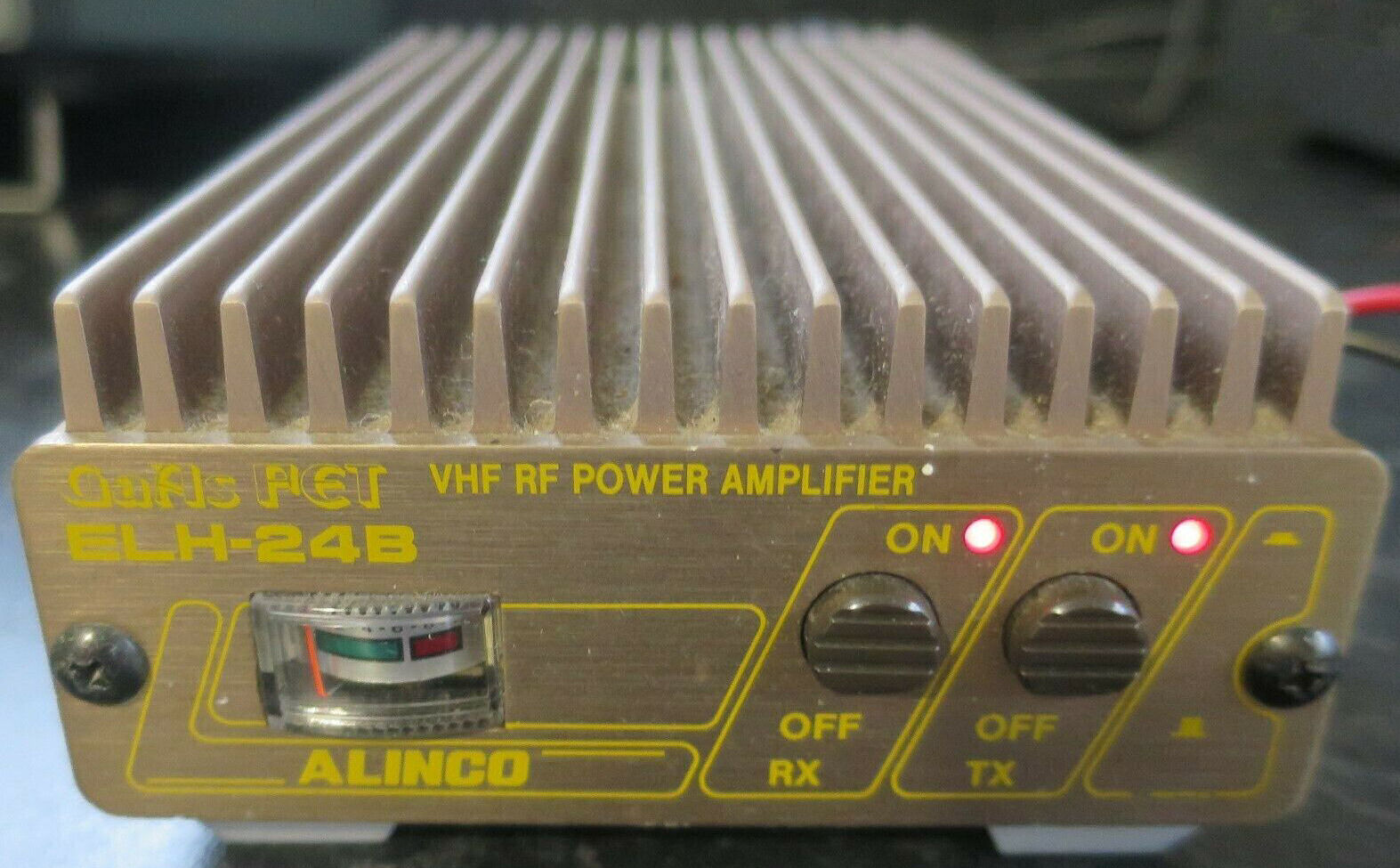

Alinco ELH-24B
| Type: |
Power Amplifier |
| Frequency Range: |
143-149MHz |
| Voltage: |
13.8 VDC |
| Current Drain: |
|
| Drive power: |
Max: 5 W |
| Maximum Power output: |
Max: 30 W |
| Impedance: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
|
| Weight: |
|
| Manufactured: |
19xx-19xx |
| Other: |
Pre-amp: 10dbi Gain |
| Related Documents: |
|
 |
