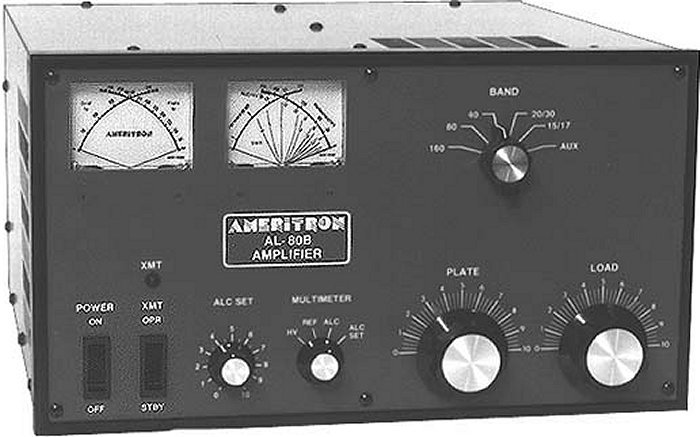

Ameritron AL-80B

Type: Power Amplifier
Frequency Range: 10-160 m + WARC (Europe)
15-160 m + WARC (USA)
Voltage: Mains
Current Drain: ? A
Drive power: Max 100 W (PEP). 85 W (PEP) for full output
Maximum Power output: SSB: 1 KW (PEP)
CW: 800 W
Impedance: 50 ohms, SO-239
Dimensions (W*H*D): 14.5 x 8.5 x 15.5"
Weight: 48 lbs
Manufactured: USA, 200x-200x
Other: One 3-500Z Valve
