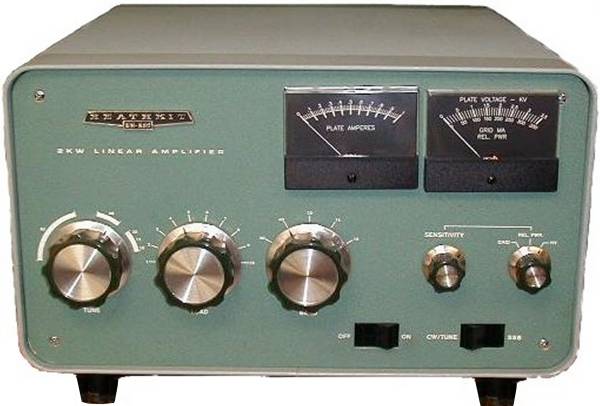

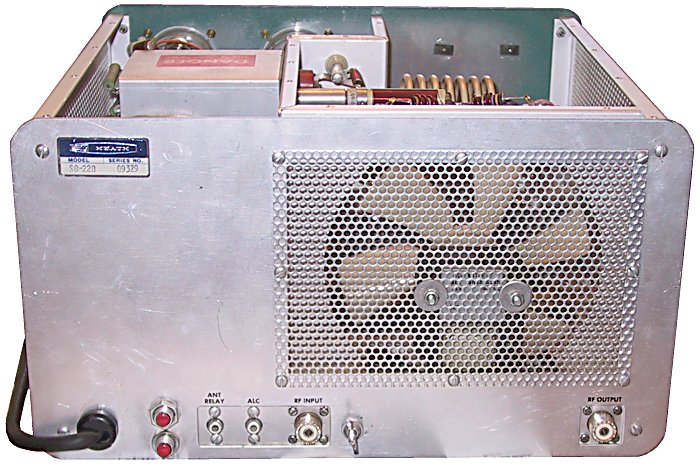

Heathkit SB-220

Type: Power Amplifier
Frequency Range: 10-80 m
Voltage: Mains
Current Drain: ? A
Drive power: 100 W
Maximum output power: SSB: 2 KW
CW: 1 KW
Dimensions (W*H*D): 378*209*368 mm
Weight: ? Kg
Manufactured: 197x-197x
Other: 2 x 3-500Z
Related Documents:
