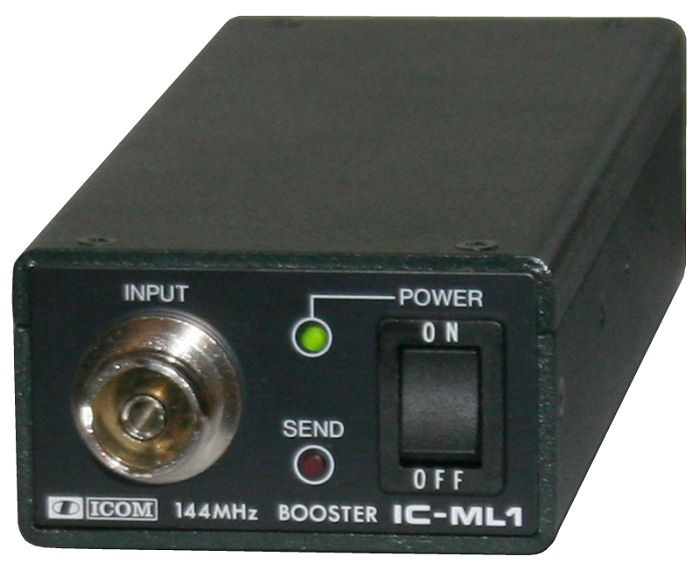

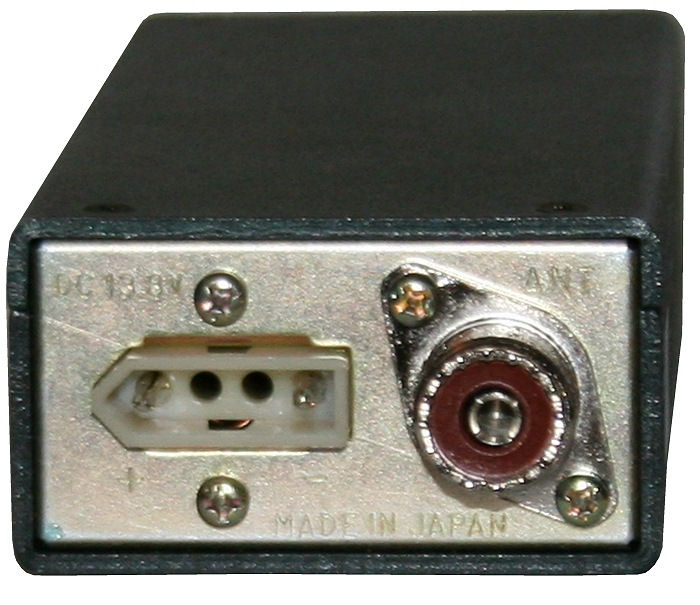

Icom IC-ML1
| Type: |
All-mode HF Linear Amplifier |
| Frequency Range: |
144-148 MHz |
| Voltage: |
13.8 VDC +/-15% |
| Current Drain: |
Approx. 2 A (30 mA standby) |
| Drive power: |
Max 2.3 W |
| Maximum Power output: |
10 W |
| Impedance: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
63 x 35 x 160 mm |
| Weight: |
32 gr |
| Manufactured: |
Japan: 19xx-19xx (Discontinued) |
| Other: |
Primarily Made for the Icom IC-2A/AT/E |
| Related Documents: |
Manual (1.6 MB) |
 |
