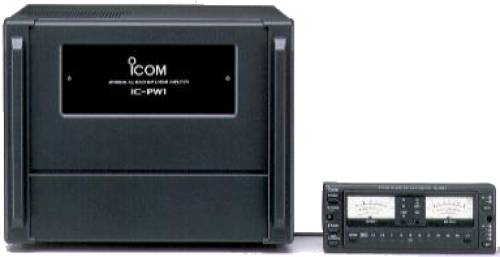

Icom IC-PW1

Type: All-mode HF/VHF Linear Amplifier
Frequency Range: 10-160 m + WARC / 50-54 MHz
Voltage: Mains, 90-132 VAC / 180-264 VAC, 50/60 Hz
Current Drain: Max 20 A @ 110 VAC
Max 15 A @ 230 VAC
Drive power: Max 100 W
Maximum power output: 90-132 VAC: 500 W (CW/RTTY), 500 W PEP (SSB)
180-264 VAC: 1 KW (CW/RTTY), 1 KW PEP (SSB)
100% duty cycle!
Impedance: 50 ohms, input 2*SO-239, output 4*SO-239
Dimensions (W*H*D): Amp: 350*269*378 mm
Detachable control panel: 205*82*71 mm
Weight: ? Kg
Manufactured: Japan, 199x-xxxx
Other: Built-in ATU: 16.7-150 ohms HF, 20-125 ohms 6 m
