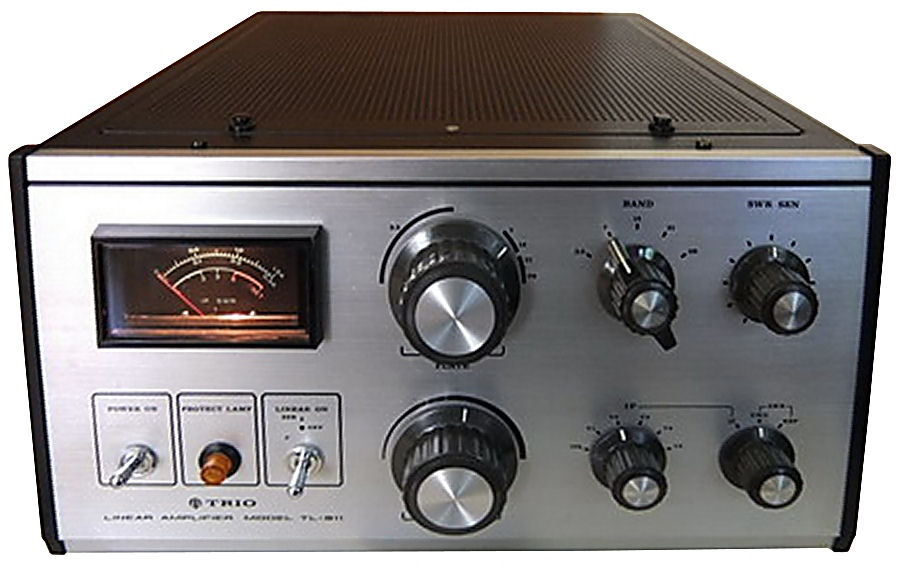

Kenwood TL-911
| Type: |
All-mode HF Linear Amplifier |
| Frequency Range: |
10-80 m |
| Voltage: |
Mains |
| Current Drain: |
Max 10 A @ 230 VAC |
| Drive power: |
Max 100 W |
| Maximum Power output: |
SSB: 1 KW PEP
CW: 700 W |
| Impedance: |
50-75 ohms: 2x SO-239 (M-jack) |
| Dimensions (W*H*D): |
332 x 170 x 345 mm |
| Weight: |
18.5 Kg |
| Manufactured: |
Japan: 1972-197x (Discontinued) |
| Other: |
5x 6LQ6 sweep tubes |
| Related Documents: |
Service Manual (1.5 MB) |
|
