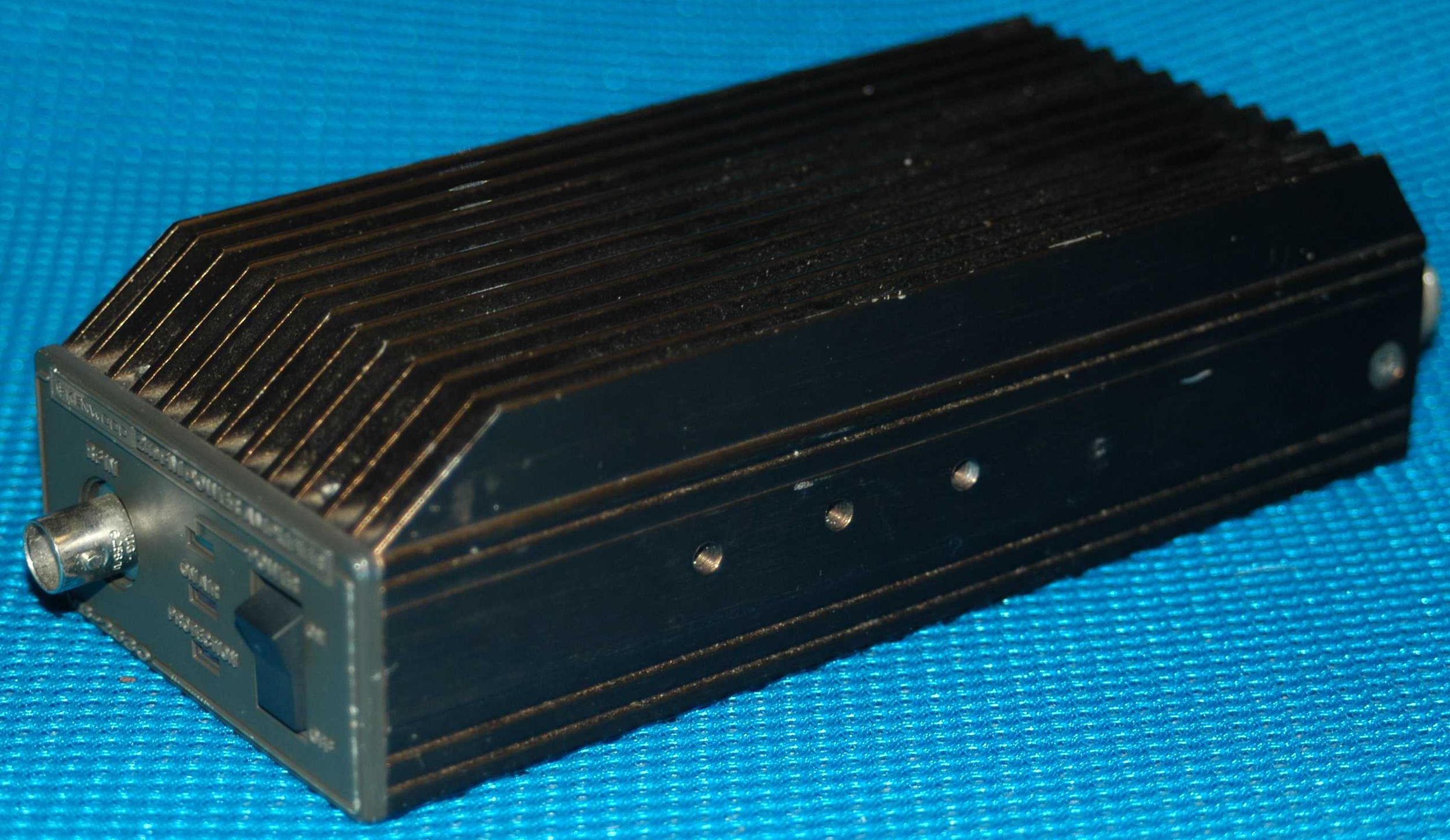

Kenwood VB-2530
| Type: |
VHF Power Amplifier |
| Frequency Range: |
144-146 MHz |
| Voltage: |
11.5-16 VDC
13.8 VDC as Standard |
| Current Drain: |
? A |
| Drive power: |
Max 1 W |
| Maximum Power output: |
25 W |
| Impedance: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
64 x 58 x 172 mm |
| Weight: |
500 gr |
| Manufactured: |
Japan: 197x-197x (Discontinued) |
| Other: |
|
| Related Documents: |
|
 |
