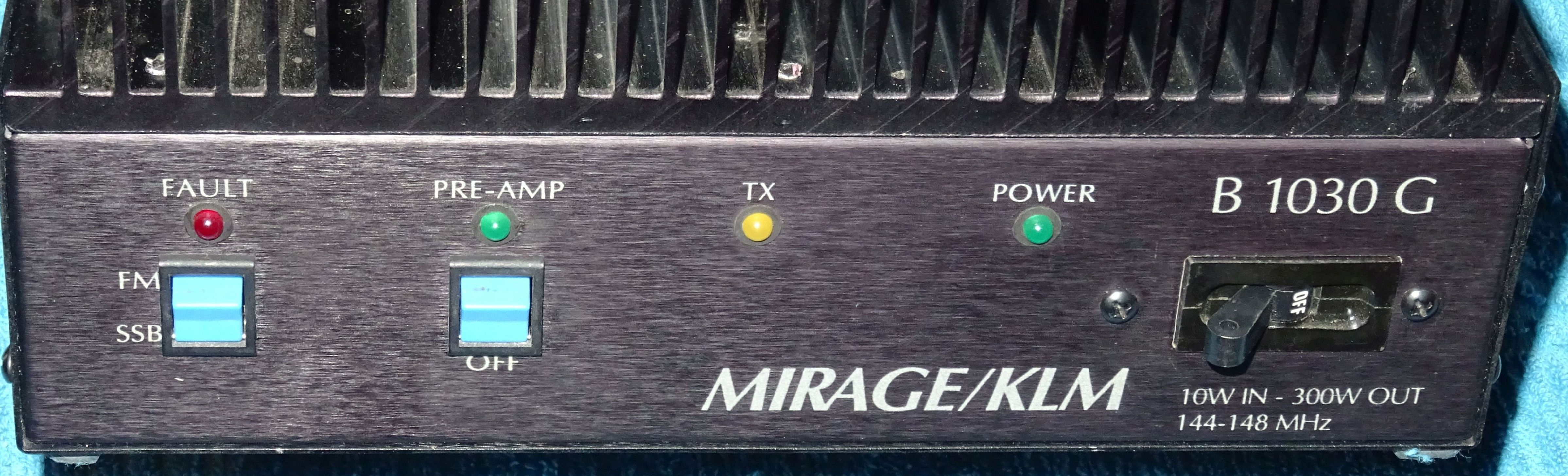

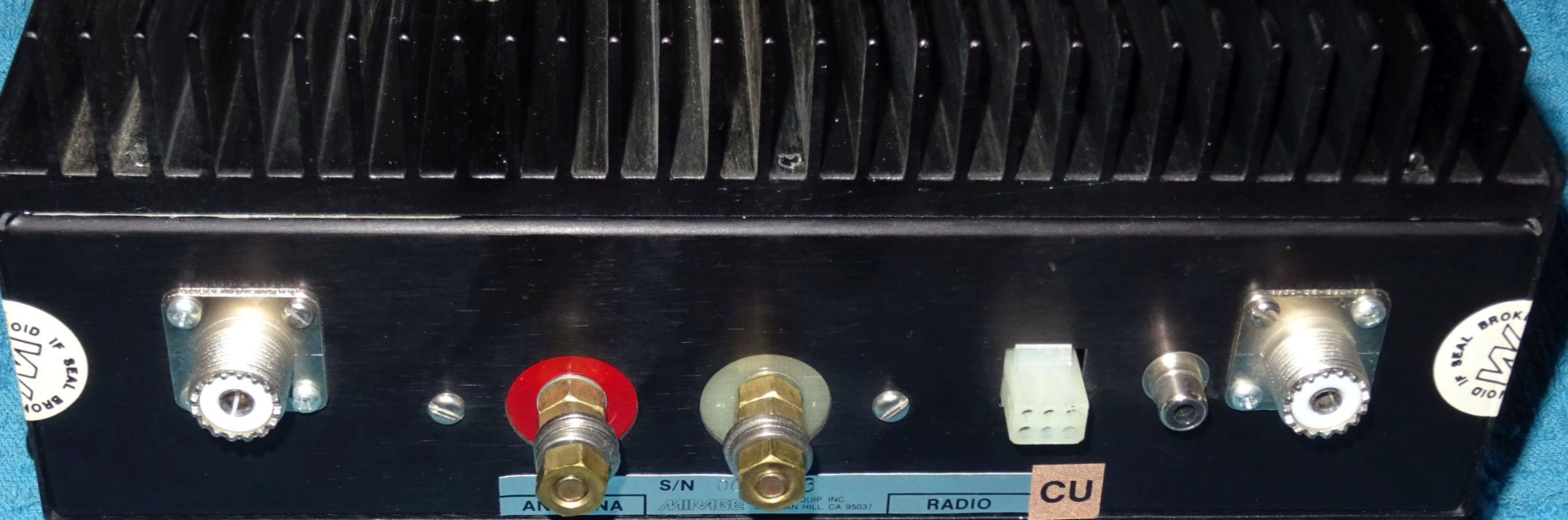

Mirage B-1030 G
| Type: |
All-mode Linear Power Amplifier |
| Frequency Range: |
144-148 MHz |
| Voltage: |
13.8 VDC |
| Current Drain: |
Max 50 A |
| Drive power: |
1-10 W |
| Maximum output power: |
300 W (50% duty cycle) |
| Dimensions (W*H*D): |
13 x 5 x 10" |
| Weight: |
13 Lbs |
| Manufactured: |
19xx-200x |
| Other: |
GaAsFET preamp 18 dB
New price 2003 in the US: $759.00 |
| Related Documents: |
User Manual (20 KB) |
 |
