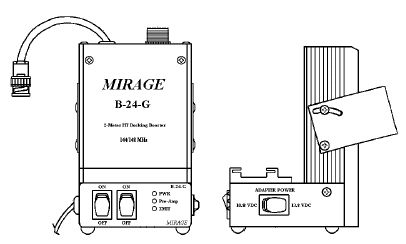

Mirage B-24-G

Type: Power Amplifier
Frequency Range: 144-148 MHz
Voltage: 13.8 VDC
Current Drain: Max 8 A
Drive power: 1-5 W
Maximum output power: 50 W
Dimensions (W*H*D): 3.4 x 6 x 3.4"
Weight: 1.5 Lbs
Manufactured: 19xx-200x
Other: Docking PA for handheld transceivers
GaAsFET preamp 18 dB
New price 2003 in the US: $114.95
Related Documents: User Manual (73 KB)
