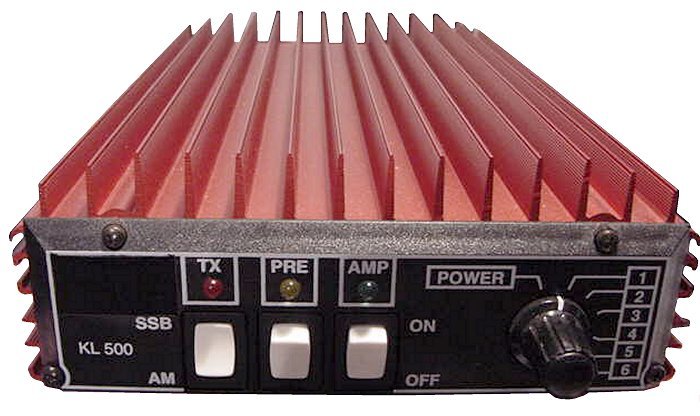

RM Italy KL-500

Type: HF/VHF/UHF Linear Amplifier
Frequency Range: 3.5-30 MHz
Voltage: 12-14 VDC
Current Drain: Max 34 A
Drive power: AM/FM: 1-15 W
SSB/CW: 2-30 W
Maximum Power output: AM/FM: 60-300 W
SSB/CW: 120-600 W
Impedance: 50 ohms, SO-239
Dimensions (W*H*D): ? mm
Weight: ? Kg
Manufactured: Italy, 199x-199x
Other: Built-in 26 dB preamp
