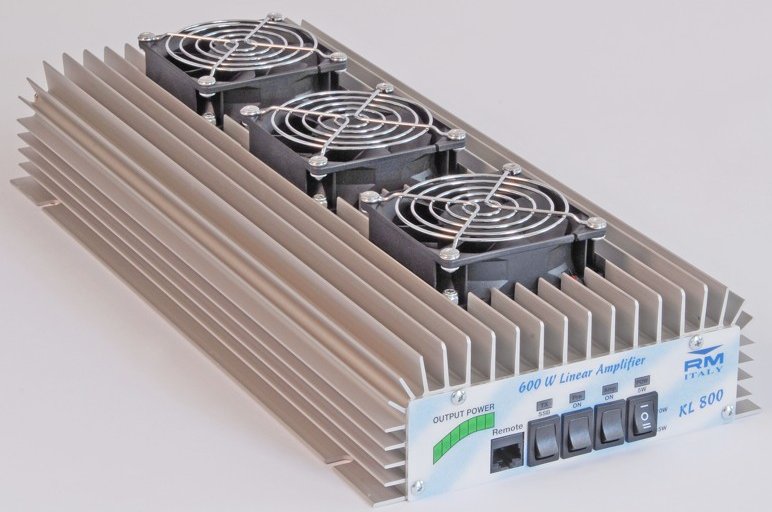

RM Italy KL-800

Type: HF/VHF/UHF Linear Amplifier
Frequency Range: 24-30 MHz
Voltage: 22-30 VDC
Current Drain: Max 34 A
Drive power: AM/FM: 1-15 W
SSB/CW: 2-30 W
Maximum Power output: AM/FM: 200-600 W
SSB/CW: 300-1000 W
Impedance: 50 ohms, SO-239
Dimensions (W*H*D): 191 x 80 x 450 mm
Weight: 3.3 Kg
Manufactured: Italy, 199x-199x
Other: Built-in 26 dB preamp
