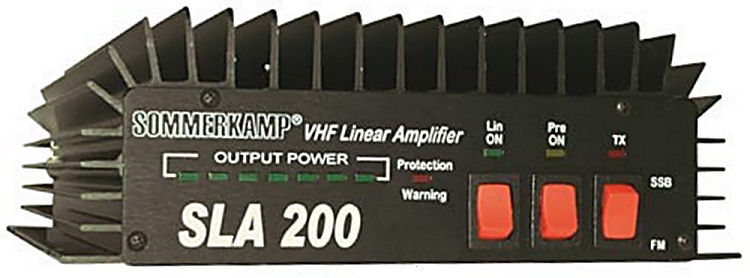

Sommerkamp SLA-200
| Type: |
All-mode HF Linear Amplifier |
| Frequency Range: |
140-150 MHz |
| Voltage: |
12-14 VDC |
| Current Drain: |
Max 35 A |
| Drive power: |
5-50 W |
| Maximum Power output: |
80-250 W (Depending on Input) |
| Impedance: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
170 x 75 x 275 mm |
| Weight: |
1.7 Kg |
| Manufactured: |
200x-20xx |
| Other: |
High SWR protection |
| Related Documents: |
|
|
