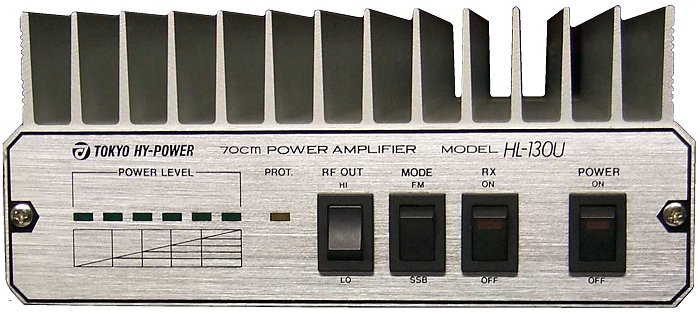

Tokyo Hy-Power HL-130U

Type: UHF all-mode Linear Amplifier
Frequency Range: 430-440 MHz (Europe/Asia)
440-450 MHz (USA)
Voltage: 13.8 VDC
Current Drain: Max 23 A
Drive power: 5/10/25 W auto select
Maximum output power: 120 W
Dimensions (W*H*D): ? mm
Weight: ? Kg
Manufactured: 19xx-19xx
Other: GaAsFET Preamp
Related Documents:
