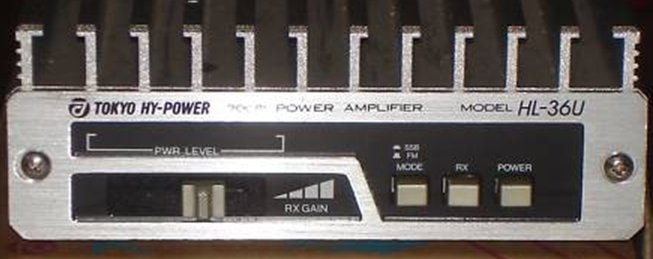

Tokyo Hy-Power HL-36U

Type: UHF all-mode Linear Amplifier
Frequency Range: 430 MHz
Voltage: 13.8 VDC
Current Drain: Max ?? A
Drive power: 6/12 W Automatically selectable
Maximum output power: 30 W
Dimensions (W*H*D): 122 x 42 x 174 mm
Weight: 900 g
Manufactured: Japan, 19xx-19xx
Other: GaAsFET Preamp
Related Documents:
