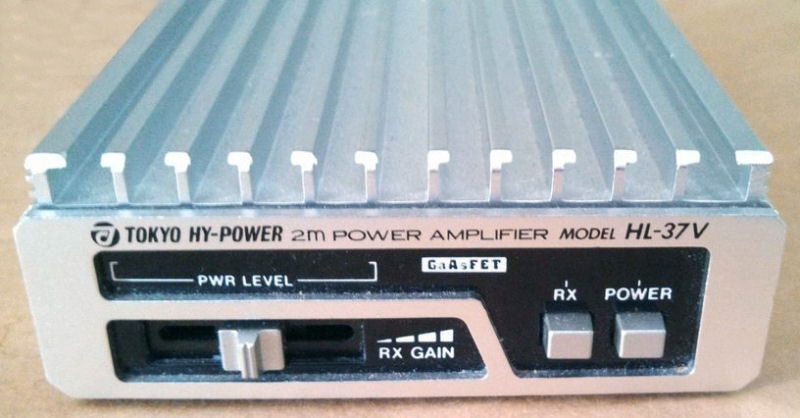

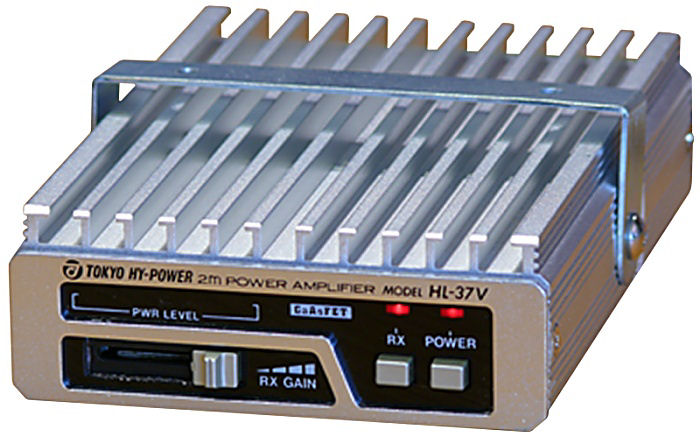

Tokyo Hy-Power HL-37V

Type: VHF all-mode Linear Amplifier
Frequency Range: 144-148 MHz
Voltage: 13.8 VDC
Current Drain: Max 5 A
Drive power: 0.5/5 W
Maximum output power: 30 W
Dimensions (W*H*D): 100 x 35 x 144 mm
Weight: 550 g
Manufactured: Japan, 19xx-19xx (Discontinued)
Other: GaAsFET Preamp (Built-in adjustable -20 to +14 dB)
Internal FM/SSB switch
