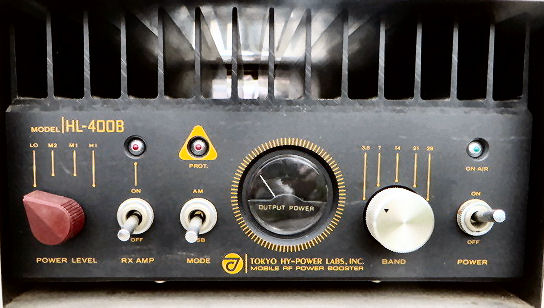

Tokyo Hy-Power HL-400B

Type: HF all-mode Linear Amplifier
Frequency Range: 10-80 m
Voltage: 13.8 VDC
Current Drain: Max 43 A
Drive power: 8-15 W
Maximum output power: AM/FM/CW: Max 200 W
SSB: Max 360 W (PEP)
Dimensions (W*H*D): 260*133*293 mm
Weight: ? Kg
Manufactured: 198x-19xx
Other: Preamp 20-24 dB
