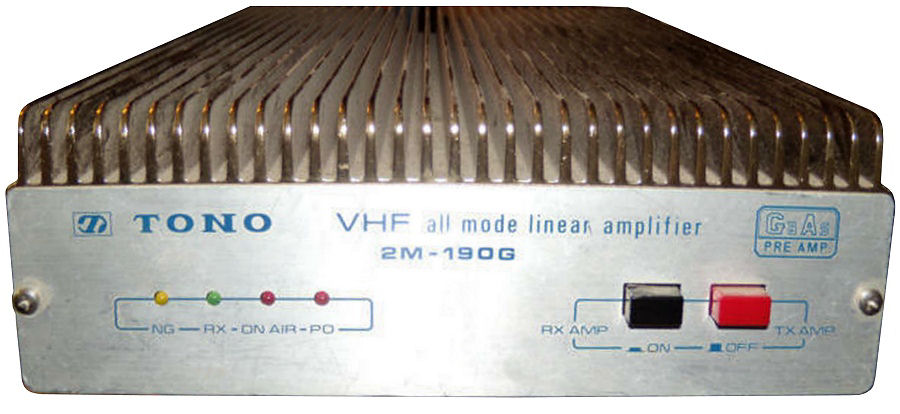

Tono 2M-190G
| Type: |
Power Amplifier |
| Frequency Range: |
144-148 MHz (2m) |
| Voltage: |
13.8 VDC |
| Current Drain: |
Max 30 A |
| Drive power: |
1-15 W |
| Maximum output power: |
190 W |
| Dimensions (W*H*D): |
200 x 65.5 x 322 mm |
| Weight: |
? Kg |
| Manufactured: |
Japan 198x-198x |
| Other: |
User Manual (Japanese) (2.8 MB)
Schematic (1.7 MB) |
| Related Documents: |
Built-in 16 dB Preamp |
|
