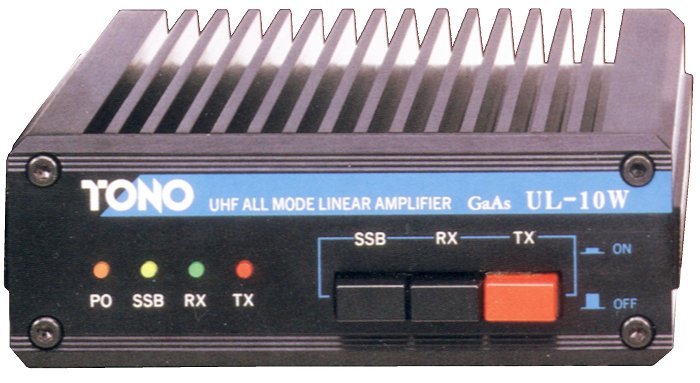

Tono UL-10W

Type: Power Amplifier
Frequency Range: 430-440 MHz
Voltage: 13.8 VDC
Current Drain: Max 3.5 A
Drive power: 0.1-6 W
Maximum output power: 20 W
Dimensions (W*H*D): 115*40*154 mm
Weight: 0.9 Kg
Manufactured: 19xx-19xx
Other: Built-in 18 dB GaAs-FET preamp
