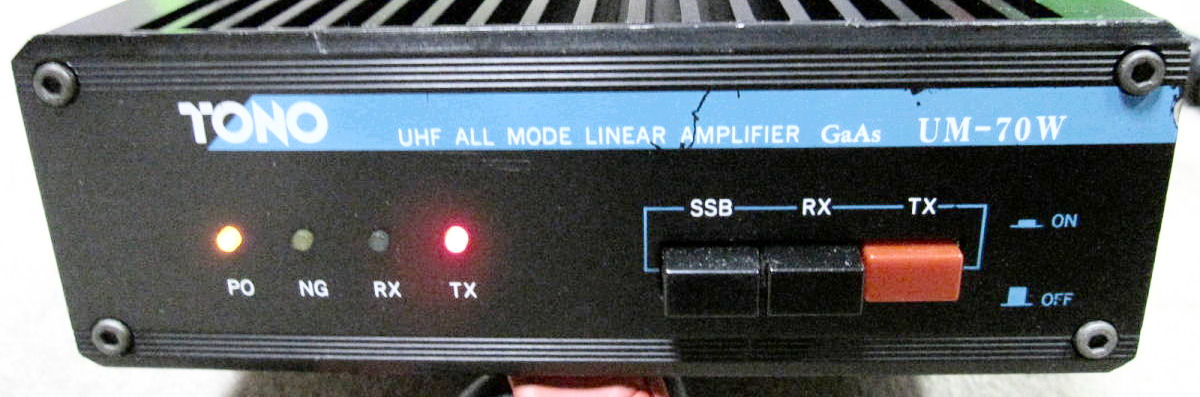

Tono UM-70W
| Type: |
Power Amplifier |
| Frequency Range: |
430-440 MHz |
| Voltage: |
13.8 VDC |
| Current Drain: |
Max 12 A |
| Drive power: |
0.1-18 W |
| Maximum output power: |
80 W |
| Dimensions (W*H*D): |
147*48*234 mm |
| Weight: |
1.4 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
Built-in 18 dB GaAs-FET preamp |
