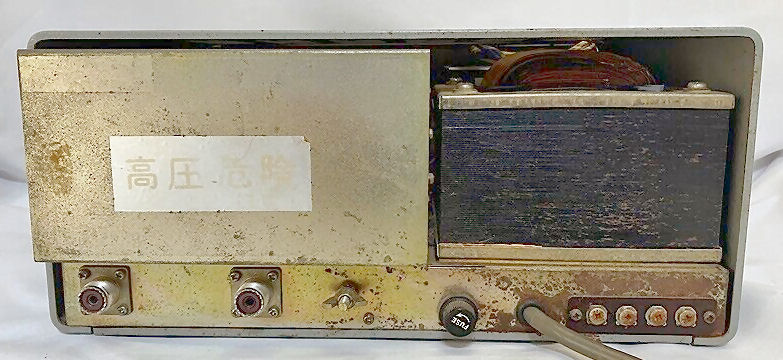

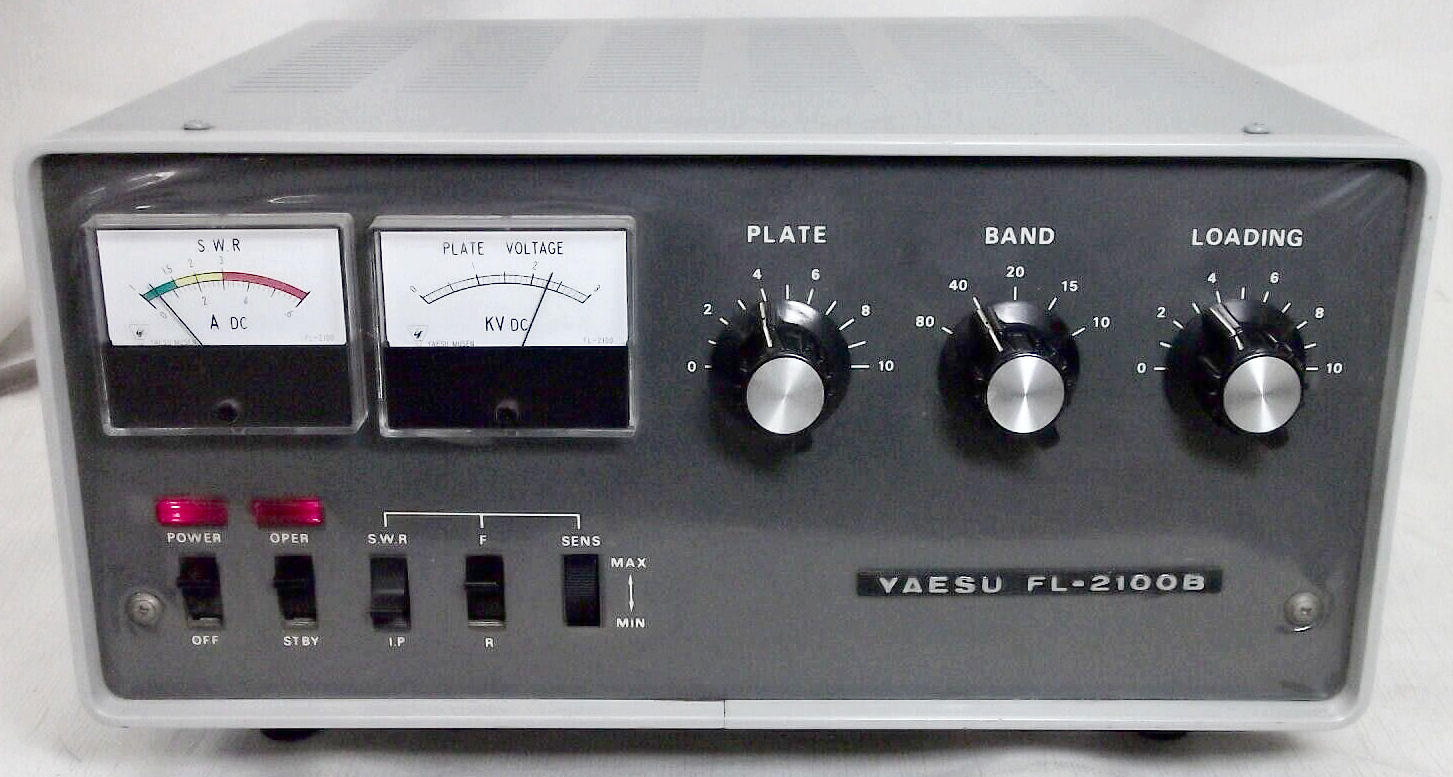

Yaesu FL-2100B


Type: All-mode HF Linear Amplifier
Frequency Range: 10-80 m
Voltage: Mains
Current Drain: ? A
Drive power: 30-100 W
Maximum Power output: SSB: 1.2 KW (PEP input)
CW: 800 W (DC input)
AM: 600 W (DC input)
Impedance: 50-75 ohms, SO-239
Dimensions (W*H*D): 340*153*285 mm
Weight: 19 Kg
Manufactured: Japan, 1971-197x
Other: 2 x 572B
Related Documents: User Manual (1.46 MB)
