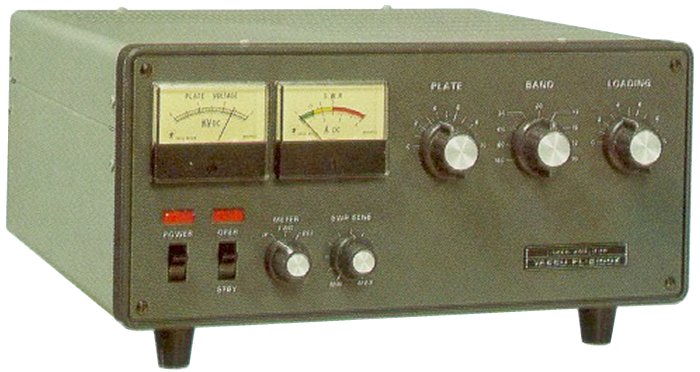

Yaesu FL-2100Z
| Type: |
All-mode HF Linear Amplifier |
| Frequency Range: |
10-160 m + WARC |
| Voltage: |
Mains |
| Current Drain: |
18 A @ 117 VAC
9 A @ 230 VAC |
| Drive power: |
Max 100 W |
| Maximum Power output: |
CW: 1 KW (input)
SSB: 1.2 KW (PEP input) |
| Impedance: |
50-75 ohms, SO-239 |
| Dimensions (W*H*D): |
345*157*326 mm |
| Weight: |
20 Kg |
| Manufactured: |
Japan, 197x-197x |
| Other: |
2 x 572B |
| Related Documents: |
User Manual (1.2 MB) |
|
