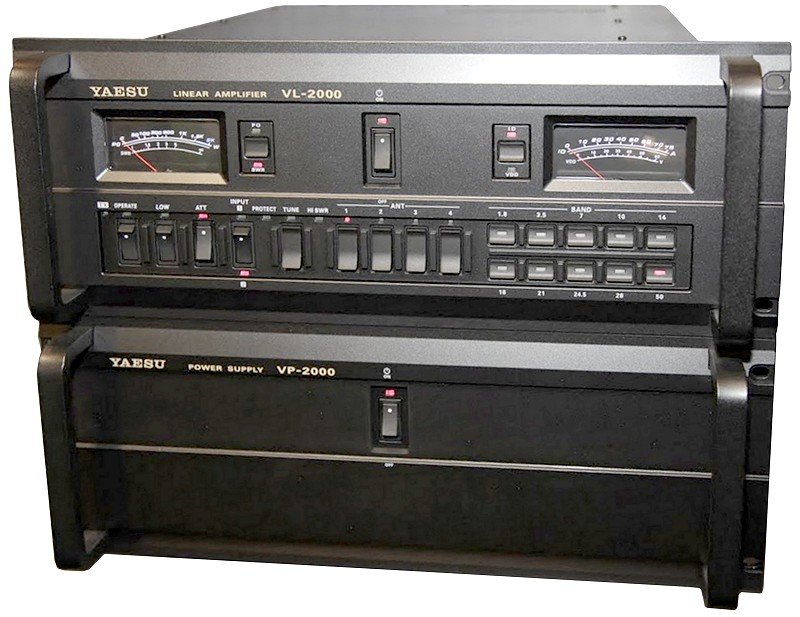

Yaesu VL-2000

Type: All-mode HF/VHF Linear Amplifier
Frequency Range: 10-160 m + WARC / 50-54 MHz
Voltage: +48 VDC, +12 VDC and -12 VDC from separate VP-2000 PSU
Current Drain: 65 A @ +48V
5.5 A @ +12V
1 A @ -12V
Drive power: Max ?? W
Maximum Power output: 1.5 KW/1 KW
Impedance: Antenna: 5*SO-239 (25-100 ohms @ 1.8 MHz, 16.6-150 ohms @ 2.5-54 MHz)
Radio: 2*SO-239
Dimensions (W*H*D): Amp: 482*177*508 mm
PSU: 482*177*508 mm
Weight: Amp: 24.5 Kg
PSU: 19 Kg
Manufactured: Japan, 2011-20xx
